Service Caster SCC-20S314-PPUB-ORG-2-R314-2 sku-7016164036

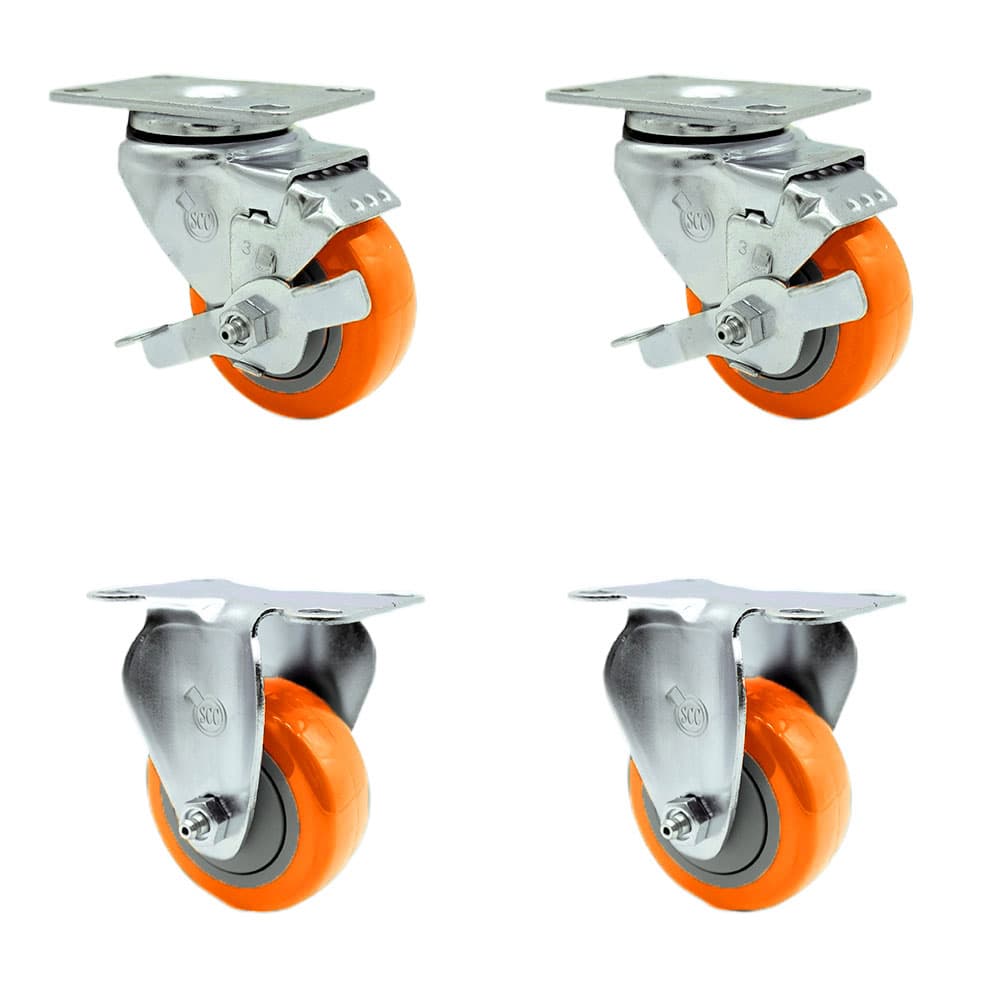

Service Caster model SCC-20S314-PPUB-ORG-2-R314-2 is a polyurethane caster set in Furniture Hardware, SKU sku-7016164036 and UPC 734005416848. The title describes a 3 Inch orange swivel top-plate caster set with 2 rigid casters; the listing gives its size as 3" Wheel and its color as Other.

Service Caster Series #20 offers these wheel sizes and mounting heights: 3" wheel at 4-1/8", 3-1/2" wheel at 4-5/8", 4" wheel at 5-1/8", 5" wheel at 6-1/8" and 6" wheel at 7-1/8". The source also lists Gray, Blue, Black, Maroon and Red wheel options. Weight capacity is 300 lbs per caster for 3" and 3.5" wheels, and 350 lbs per caster for 4", 5" and 6" wheels.

The top plate measures 2-1/2" x 3-5/8", with a bolt-hole pattern of 1-3/4" x 2-7/8" to 3"; it can be bolted or welded on. Available brakes are top lock, total lock and posi lock. Top lock holds the wheel tread, total lock holds both the wheel and swivel, and posi lock holds the wheel tread with its pedal above rather than beside the tread.
