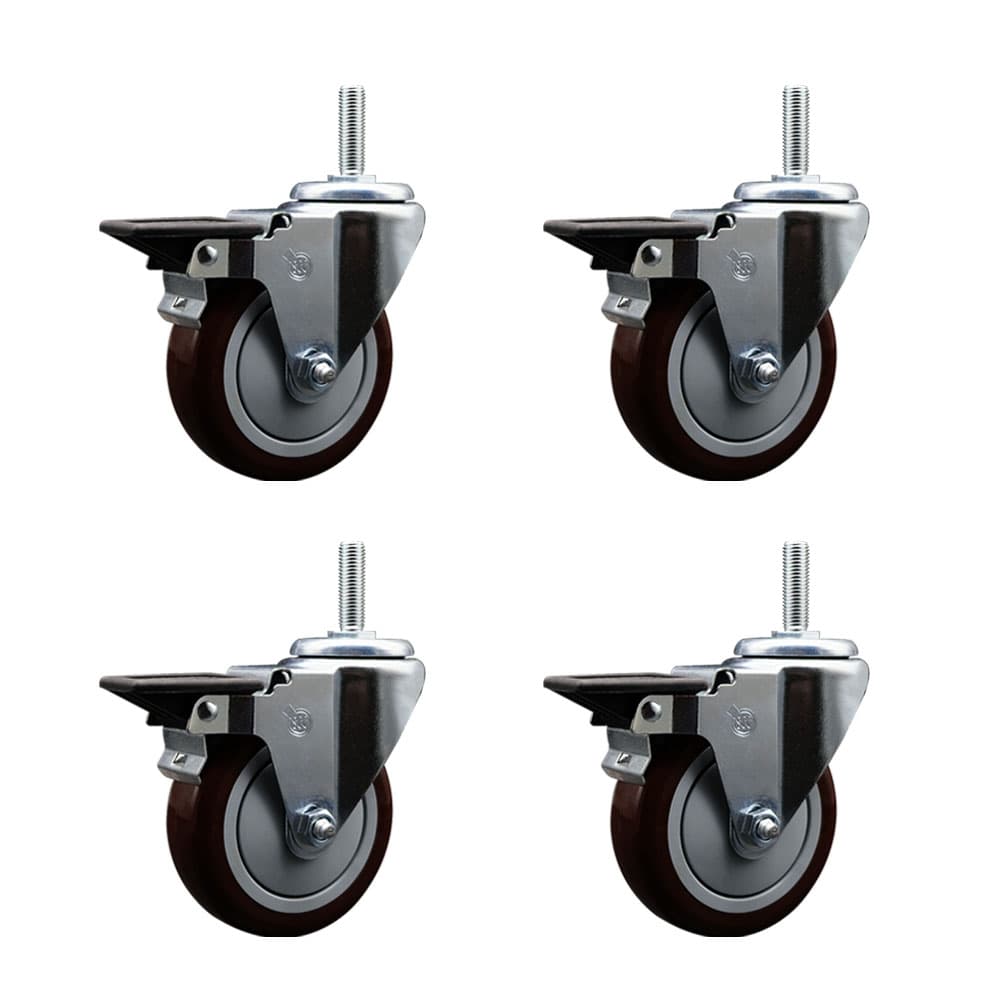

Service Caster SCC-TS20S414-PPUB-MRN-34212-2-TLB-2 4" wheel

This Service Caster Series #20 Furniture Hardware set is titled 4 Inch Maroon Poly Wheel Swivel 3/4 Inch Threaded Stem Caster Set 2 Brakes. The listed size is 4" Wheel, and the catalog color is Other. Model SCC-TS20S414-PPUB-MRN-34212-2-TLB-2; UPC 734005108248. Series #20 polyurethane casters are offered in gray, blue, black, maroon and red.

A 3" wheel has a 4-1/8" mounting height; a 3-1/2" wheel has a 4-5/8" mounting height; a 4" wheel has a 5-1/8" mounting height; a 5" wheel has a 6-1/8" mounting height; and a 6" wheel has a 7-1/8" mounting height. The 3" and 3.5" wheels are rated at 300 lbs per caster. The 4", 5" and 6" wheels are rated at 350 lbs per caster. All have a 3/4" diameter threaded stem with 10 TPI x 2-1/2" threads.

Service Caster recommends checking existing threads with a thread gauge before ordering. If you need another size, you can contact Service Caster Corporation through the seller link below the buy or add-to-cart button, then select the ask-a-question button. Available brake options are top lock, total lock and posi lock. Top lock presses against the wheel tread to lock the wheel only.

Total lock locks both the wheel and swivel. Posi lock also presses against the tread, but its pedal sits above the tread rather than beside the wheel.
