Service Caster SCC-EX20S314-PPUB-MRN-TLB-1-4 sku-5354892662

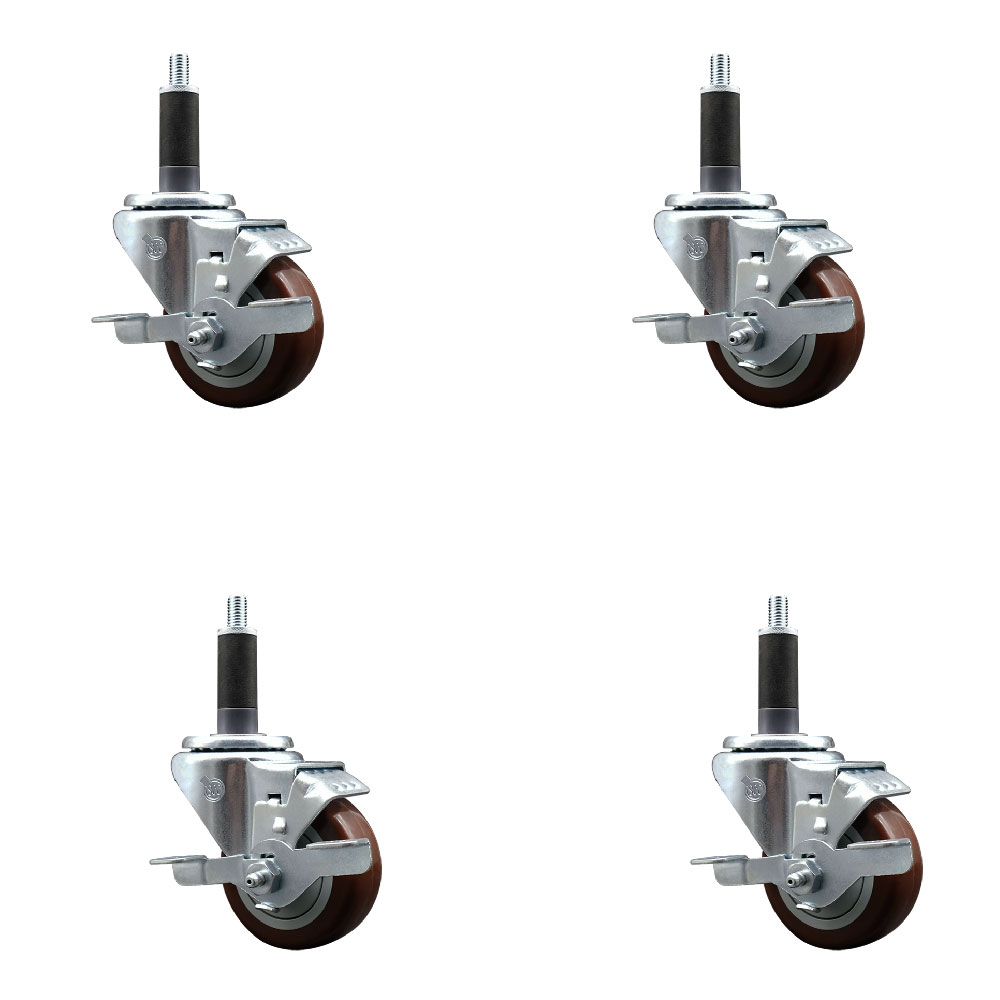

Service Caster Furniture Hardware, model SCC-EX20S314-PPUB-MRN-TLB-1-4, SKU sku-5354892662, UPC 734005176216. This Maroon polyurethane swivel caster set has a 3 Inch wheel, a 1 Inch expanding stem and a top lock brake; the catalog color is Other and the listed size is 3" Wheel.

Series #20 wheel and mounting-height options are 3" at 4-1/8", 3-1/2" at 4-5/8", 4" at 5-1/8", 5" at 6-1/8" and 6" at 7-1/8". Wheel colors offered are Gray, Blue, Black, Maroon and Red. The 3" and 3.5" casters have a 300 lbs capacity per caster; the 4" and 5" casters have a 350 lbs capacity per caster. All expanding stems are 2-11/16" long.

The 10 available stem diameters are 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4" and 1-7/8". Service Caster recommends measuring the tubing's inside diameter before ordering to select the matching stem. Brake options are top lock (TLB), total lock (TTL) and posi lock (PLB). TLB and PLB lock the wheel tread; TTL locks both the wheel and swivel.
