Service Caster SCC-EX20S314-PPUB-BLK-TLB-1-4 sku-5498800088

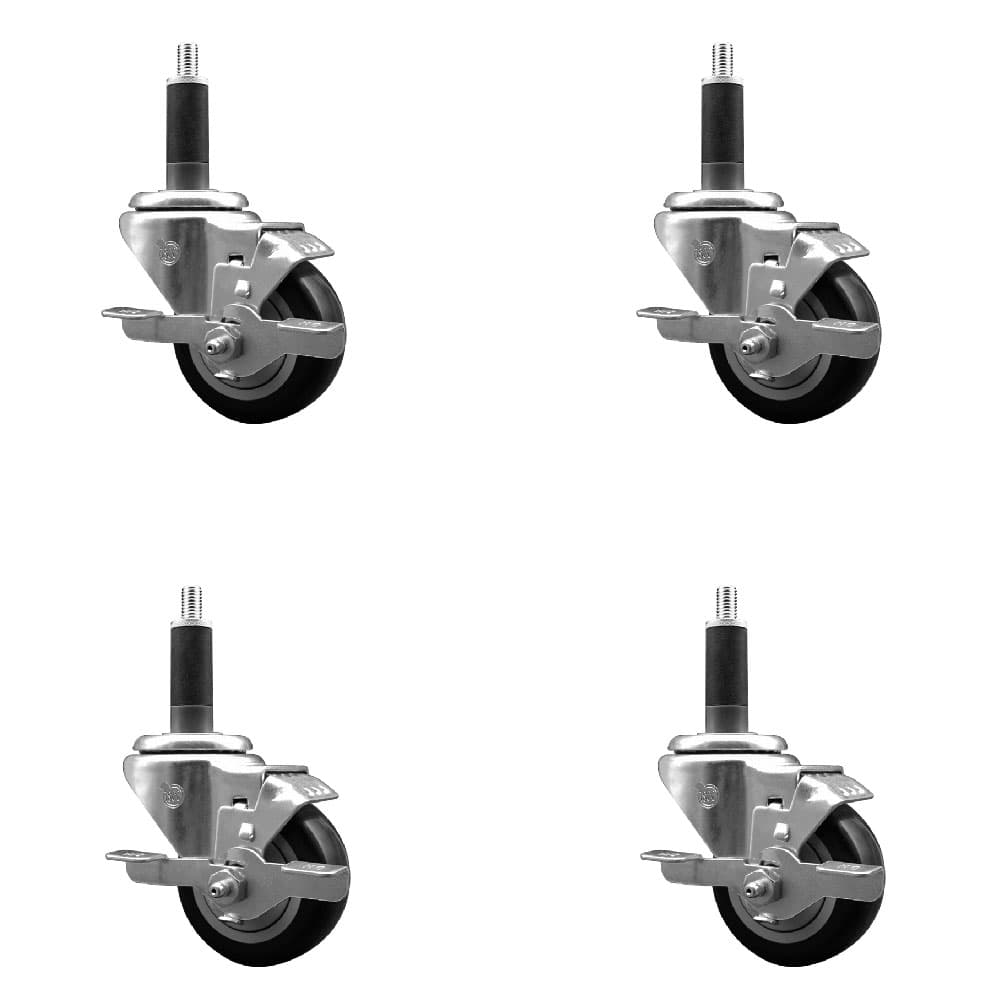

Service Caster model SCC-EX20S314-PPUB-BLK-TLB-1-4 is Furniture Hardware, SKU sku-5498800088, UPC 734005152616. Its listed color is Other and its size is 3" Wheel. The product title describes a black polyurethane swivel caster set with a 3 Inch wheel, a 1 Inch expanding stem and a brake.

Series #20 polyurethane casters come with these wheel sizes and mounting heights: 3” wheel at 4-1/8”, 3-1/2” wheel at 4-5/8”, 4” wheel at 5-1/8”, 5” wheel at 6-1/8”, and 6” wheel at 7-1/8”. Wheel colors offered are Gray, Blue, Black, Maroon and Red. The stated capacity is 300 lbs per caster for 3" and 3.5" wheels, and 350 lbs per caster for 4" and 5" wheels.

The expanding stem is 2-11/16” long and comes in 10 diameters: 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4” and 1-7/8”. Service Caster recommends measuring the tubing's inside diameter before ordering to choose the corresponding stem diameter; customers can call or send a message for help measuring or finding a size.

Brake options are top lock (TLB), total lock (TTL) and posi lock (PLB). Top lock and posi lock apply locking force to the wheel tread and lock the wheel only. Total lock applies force to the tread and locks both the wheel and swivel.
