Service Caster SCC-EX20S314-PPUB-BLK-PLB-118-4sku-5354892735

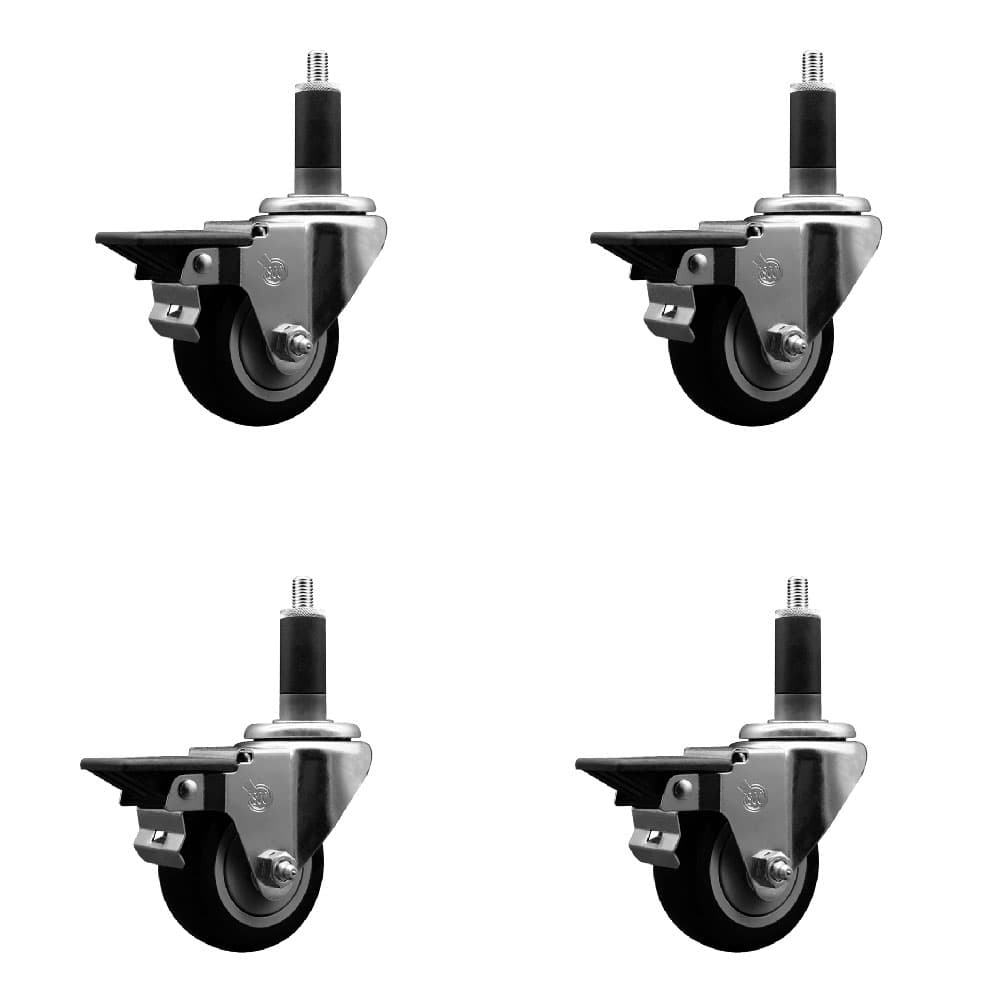

Service Caster model SCC-EX20S314-PPUB-BLK-PLB-118-4 is listed as Furniture Hardware in color Other, with a 3" Wheel. This Series #20 polyurethane swivel caster set has a 3 Inch black wheel, a 1-1/8 Inch expanding stem and a posi lock brake. Series wheel and mounting-height options are 3" and 4-1/8", 3-1/2" and 4-5/8", 4" and 5-1/8", 5" and 6-1/8", or 6" and 7-1/8".

Wheels are offered in Gray, Blue, Black, Maroon and Red. The 3" and 3.5" wheels have a 300 lbs capacity per caster; the 4" and 5" wheels have a 350 lbs capacity per caster. Each expanding stem is 2-11/16" long. The 10 available diameters are 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4" and 1-7/8".

Service Caster recommends measuring the tubing's inside diameter before ordering to select the corresponding stem; customers can call or send a message for measuring help or an unlisted size. Available brakes are top lock (TLB), total lock (TTL) and posi lock (PLB). TLB and PLB lock the wheel against its tread. TTL locks both the wheel and swivel. UPC: 734005148800. SKU: sku-5354892735.
