Service Caster SCC-SS316TTLEX20S414-SRS-114 Caster

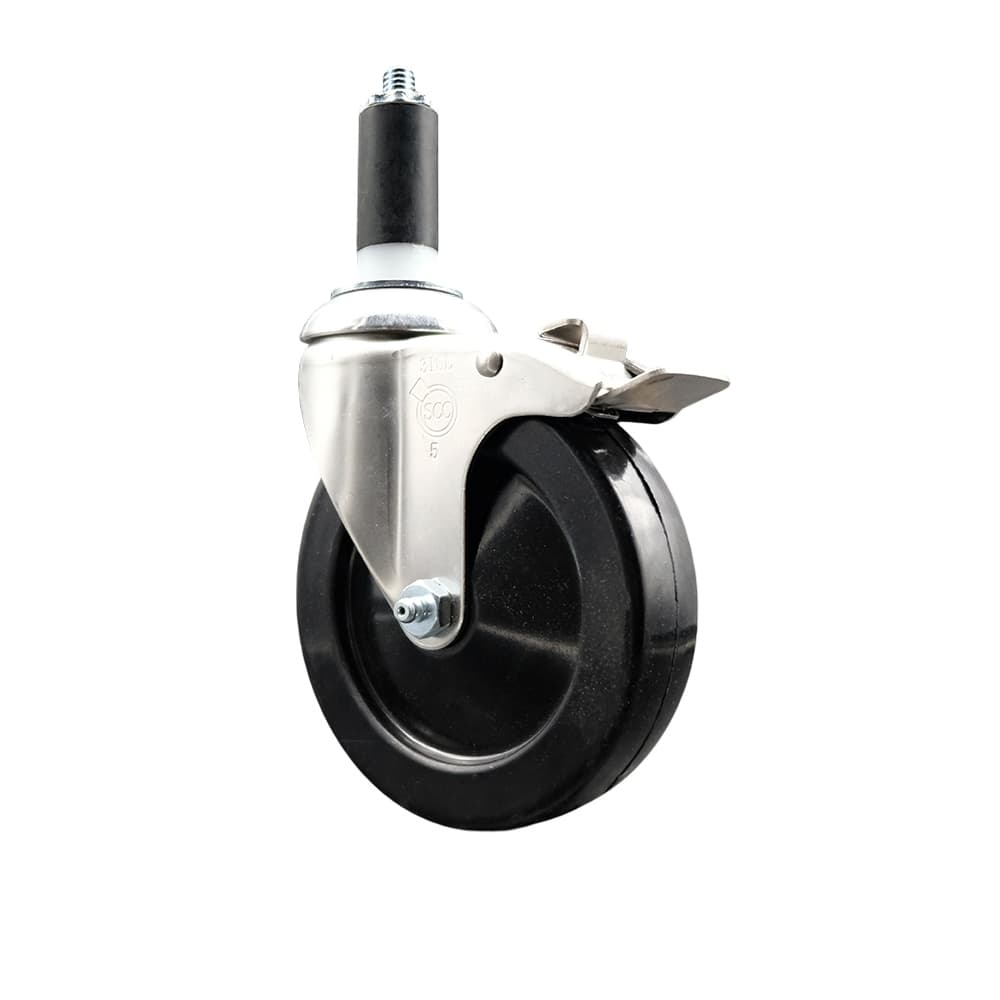

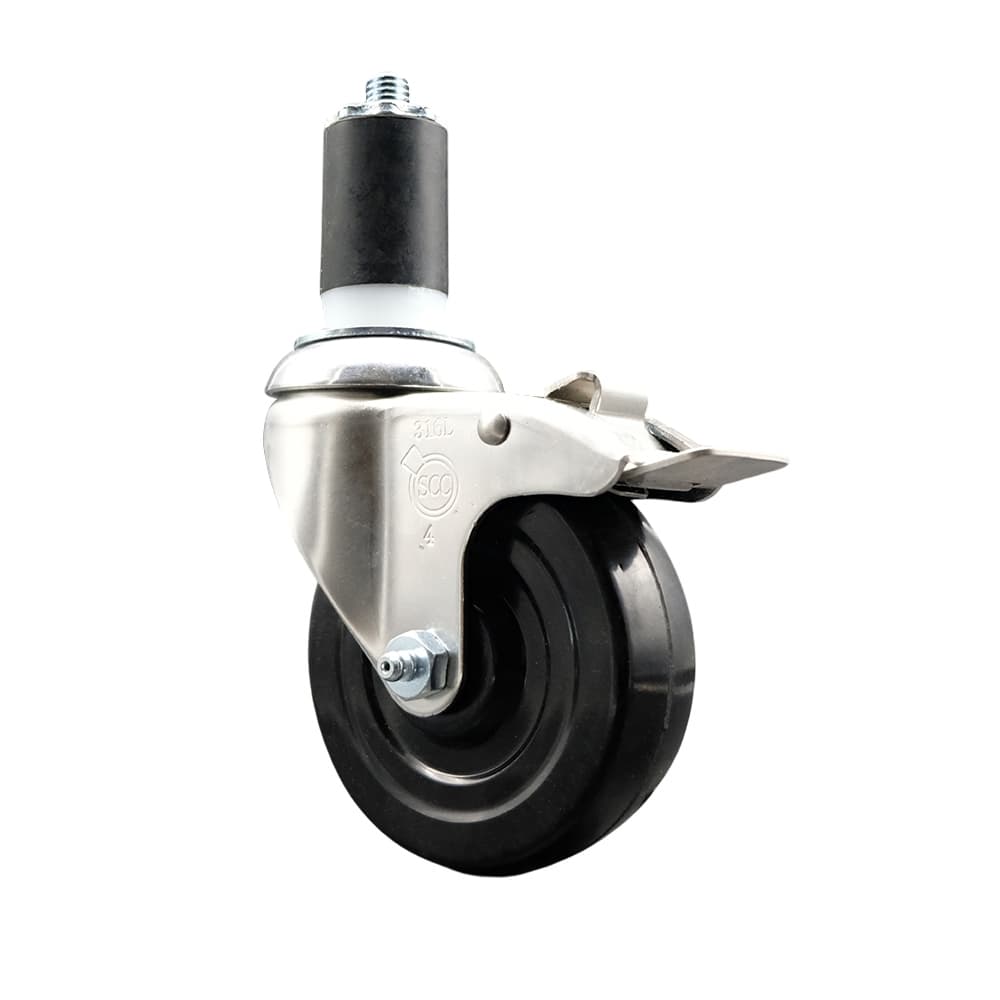

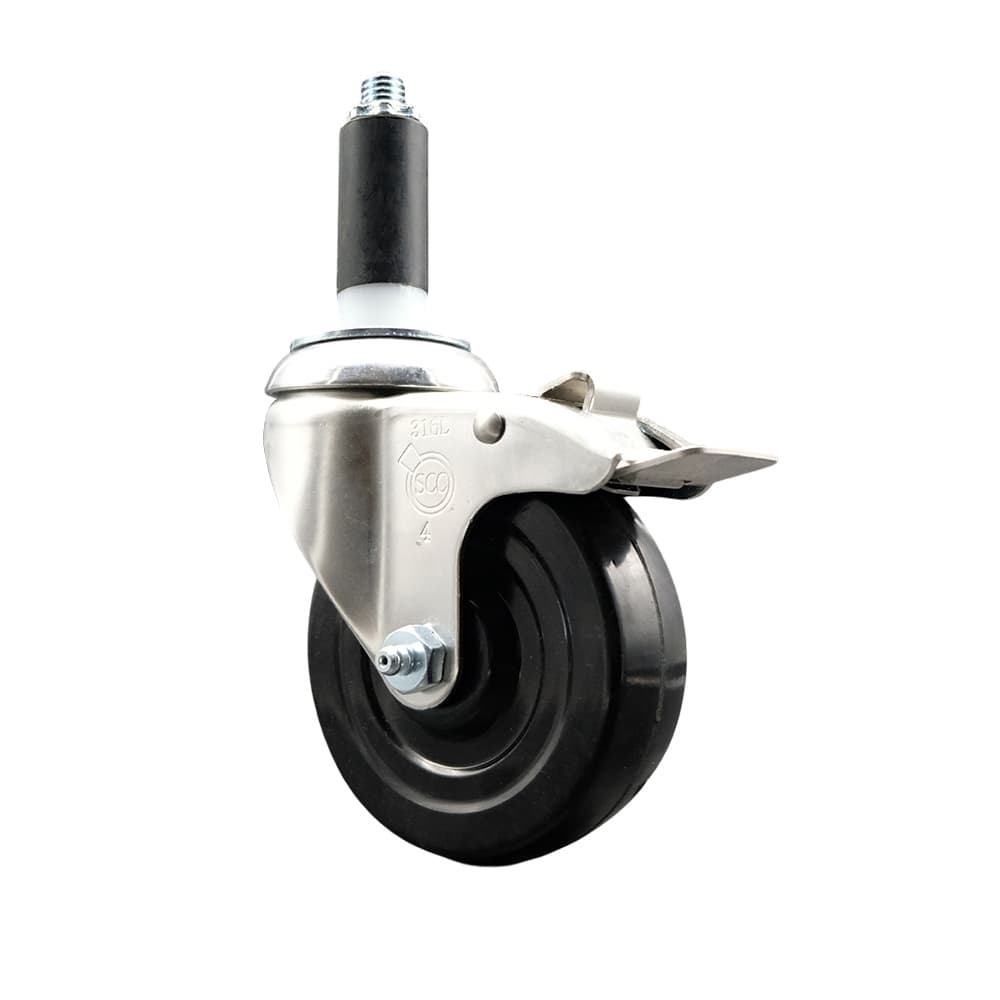

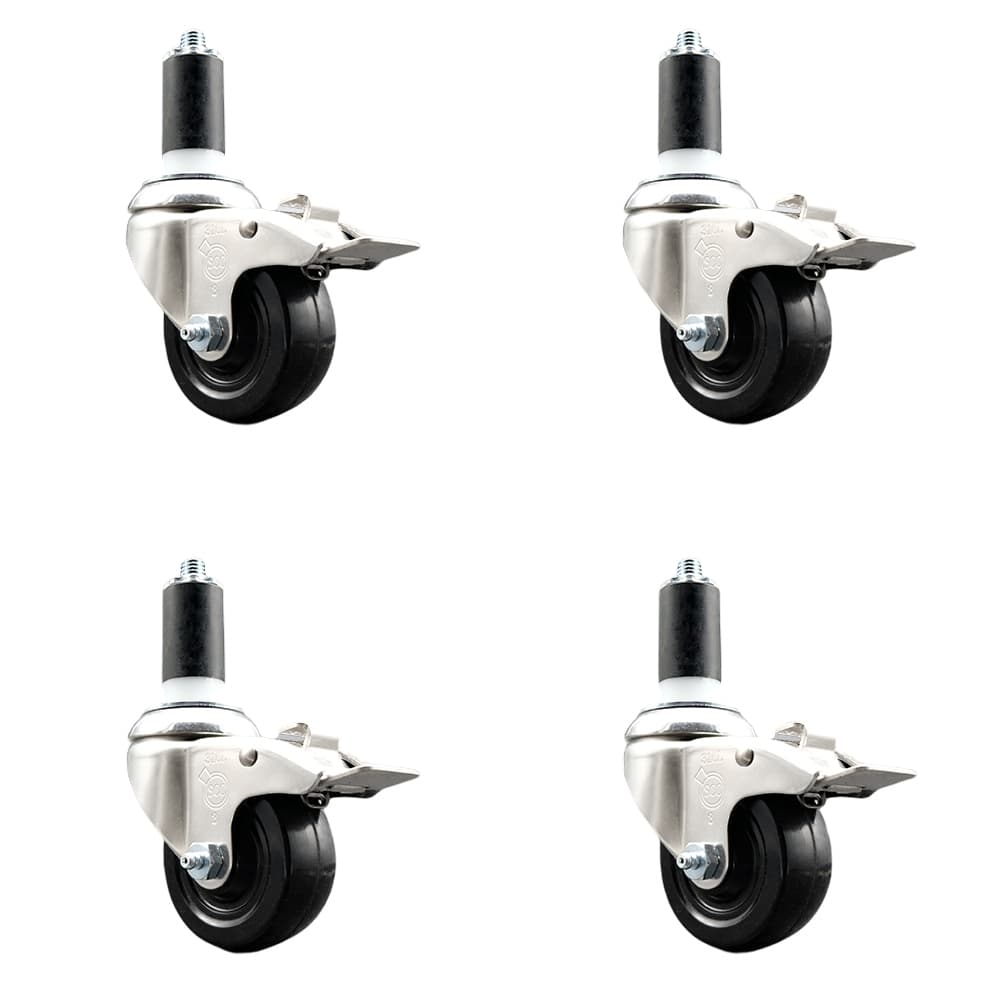

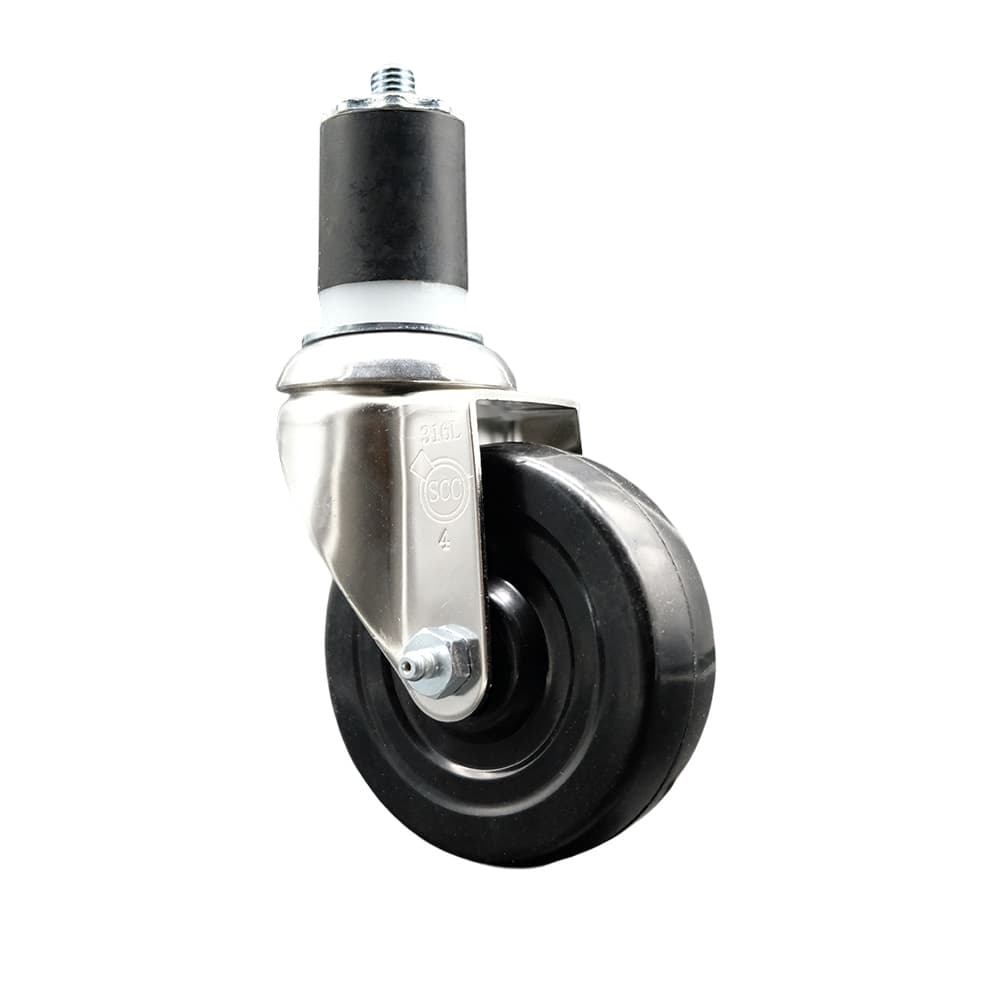

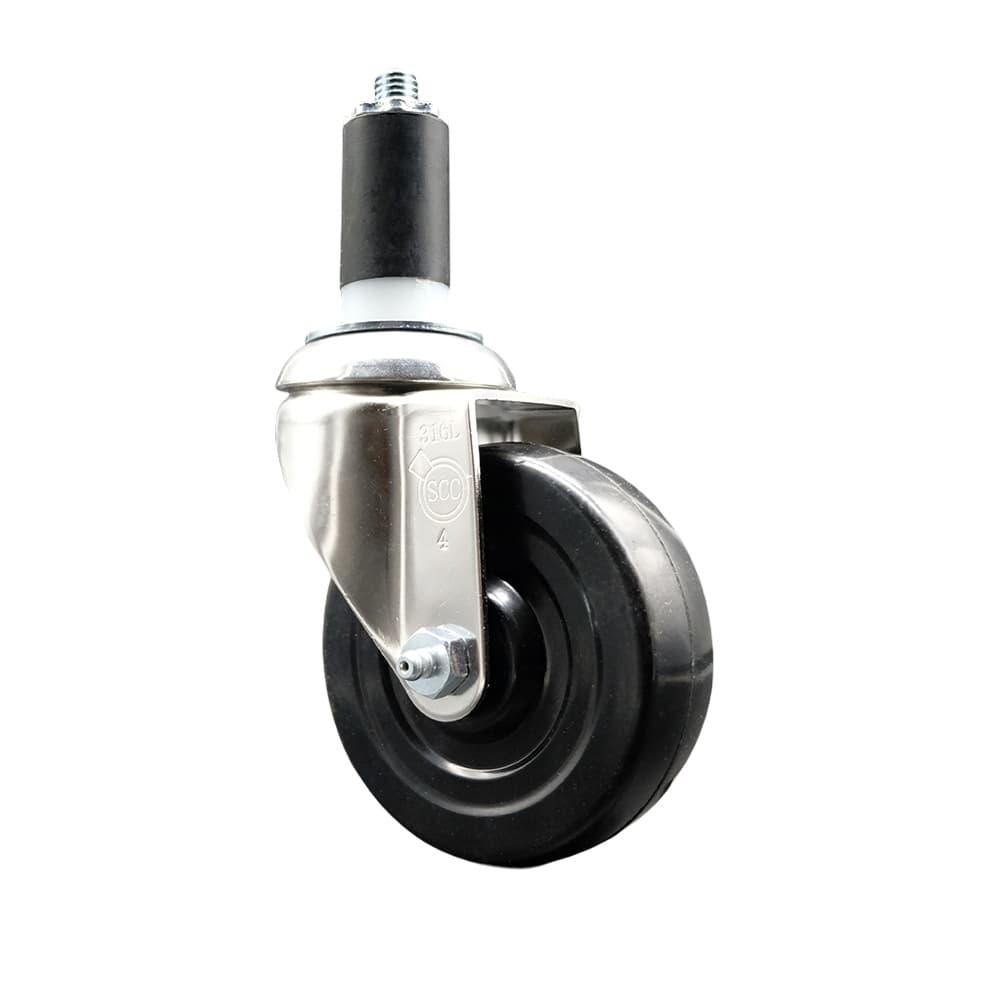

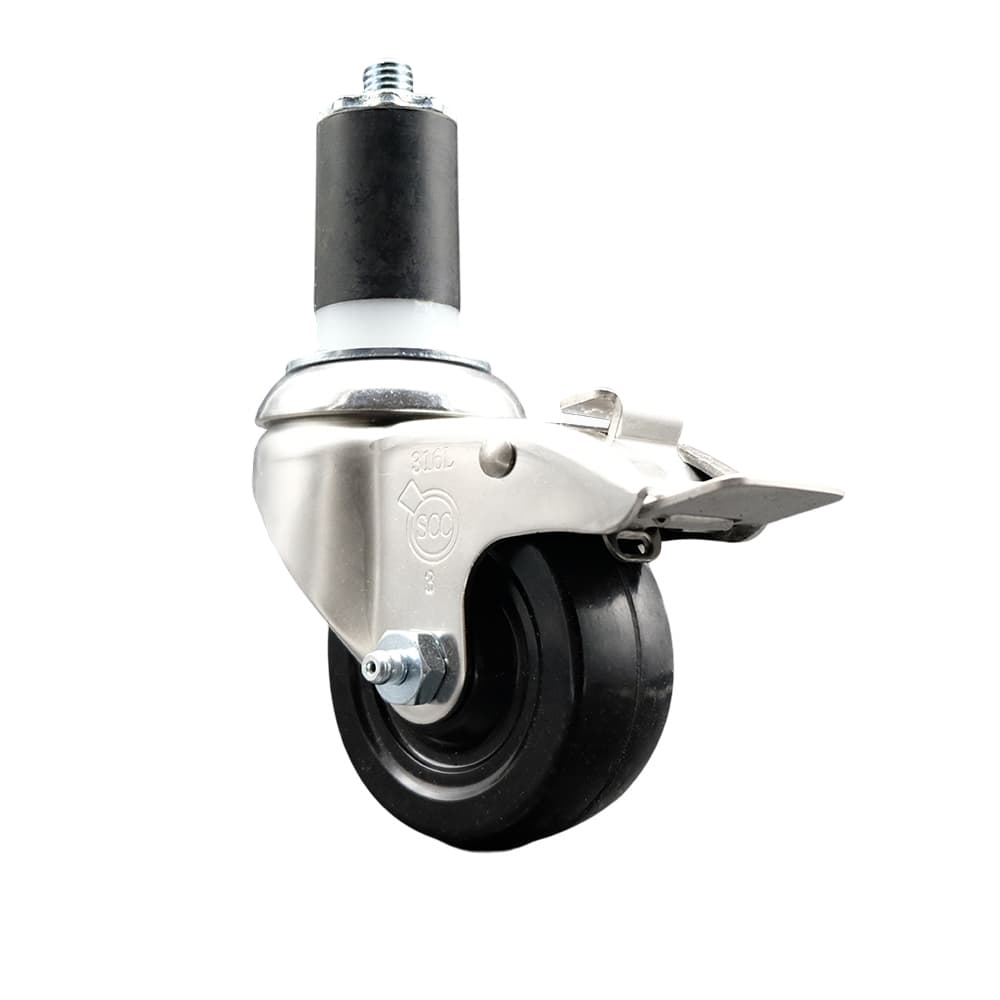

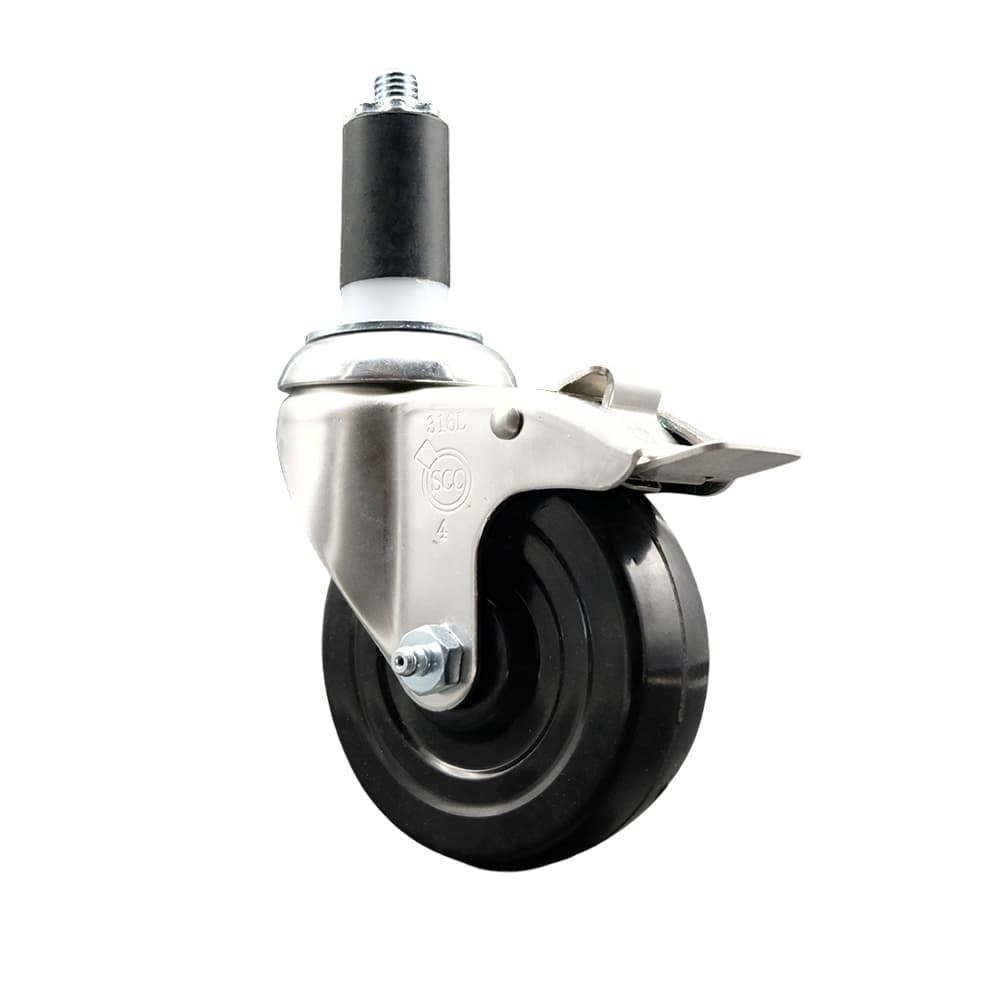

Service Caster SCC-SS316TTLEX20S414-SRS-114 is Furniture Hardware listed in color Other, with a 4" Wheel. UPC: 734005045840. This 4 Inch 316SS Series #20 soft rubber swivel caster has a 1-1/4 inch expanding stem and a lock brake.

Across the series, a 3" wheel has a 4-1/8" mounting height, a 3-1/2" wheel has a 4-5/8" mounting height, a 4" wheel has a 5-1/8" mounting height, and a 5" wheel has a 6-1/8" mounting height. Capacity per caster is 175 lbs for the 3" wheel, 200 lbs for the 3.5" and 4" wheels, and 275 lbs for the 5" wheel. Each expanding stem is 2-11/16" long.

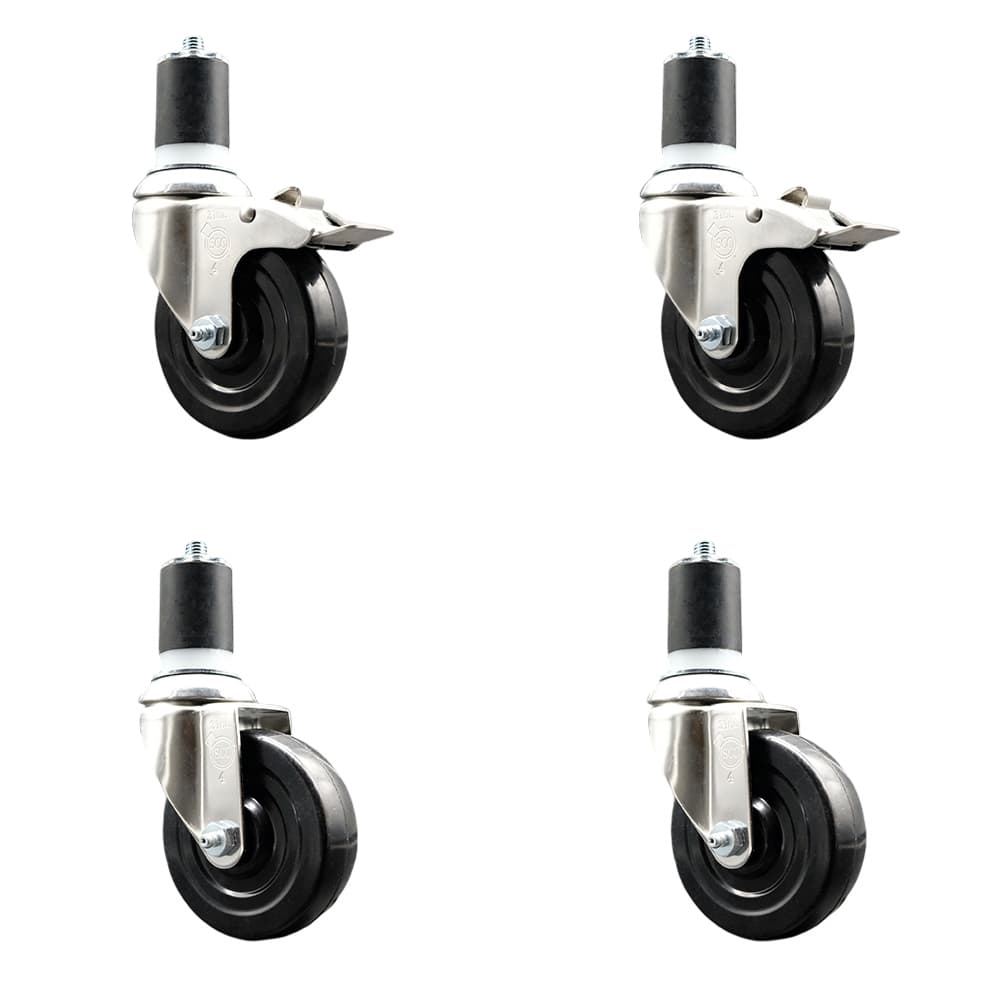

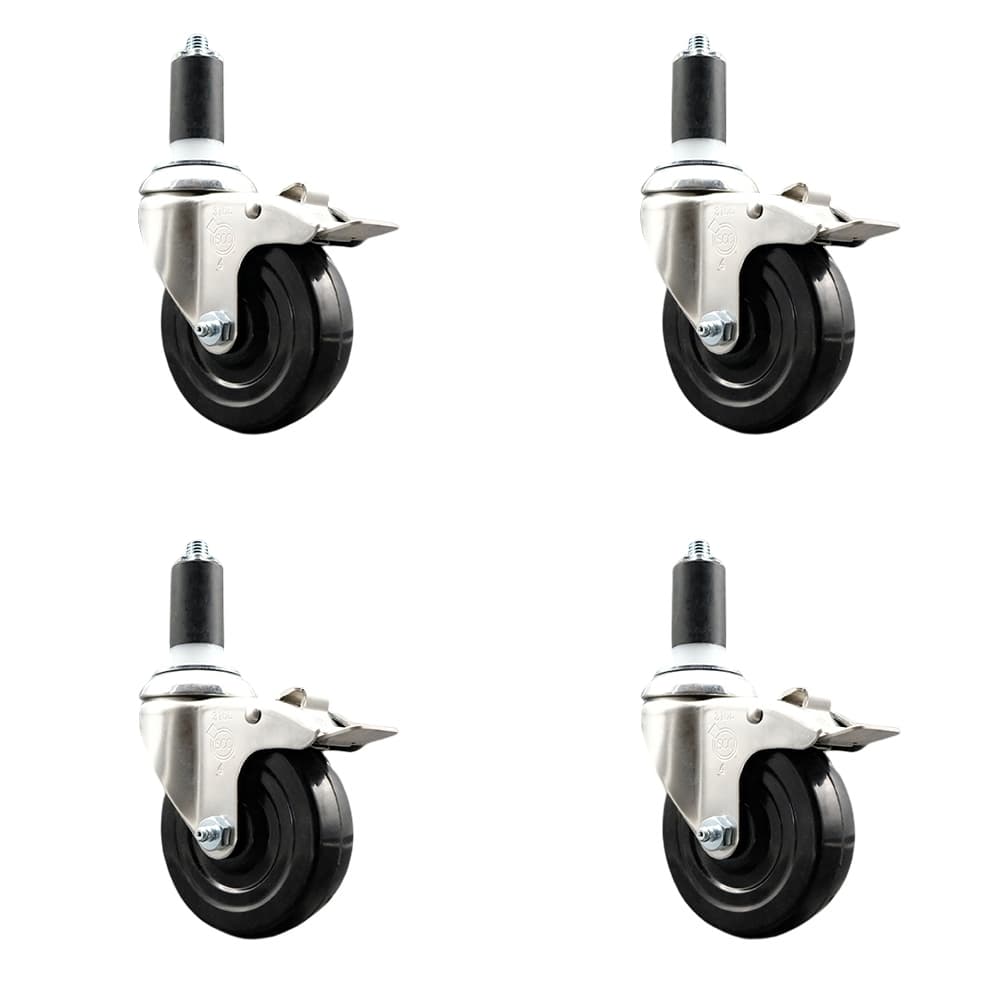

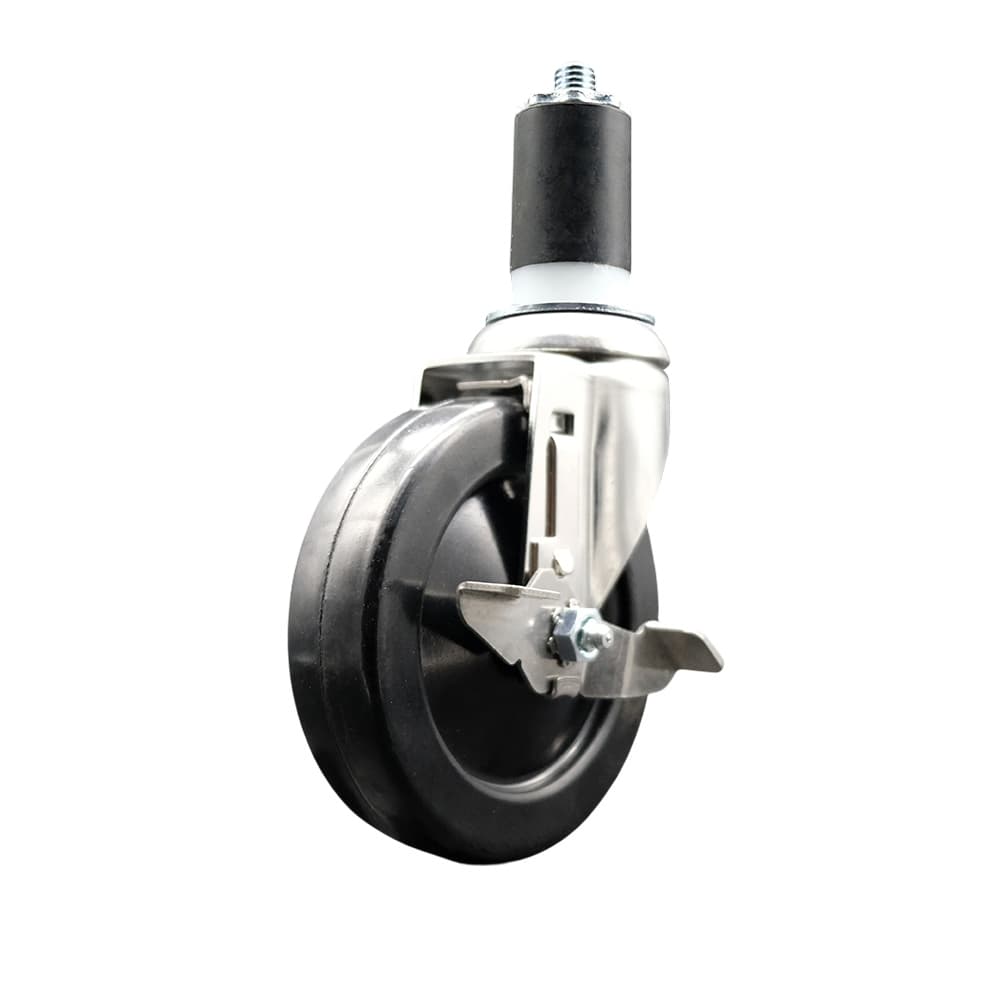

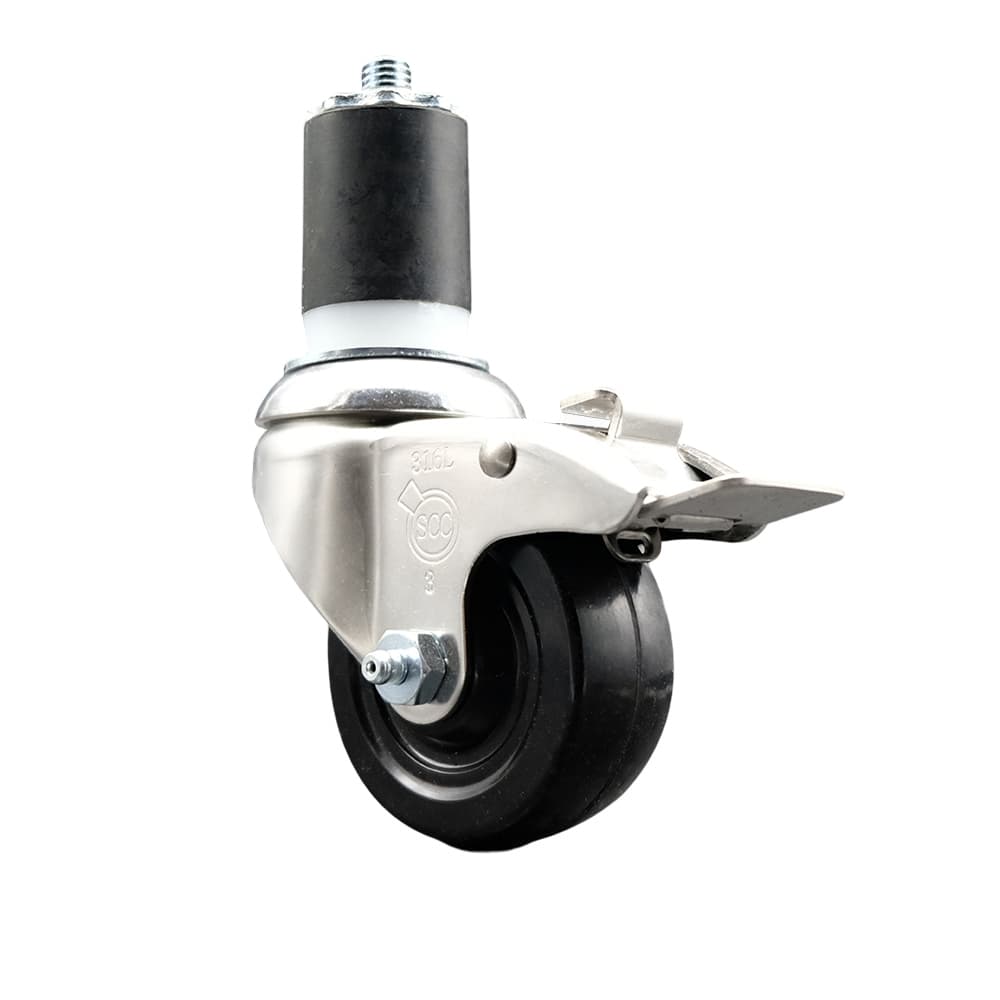

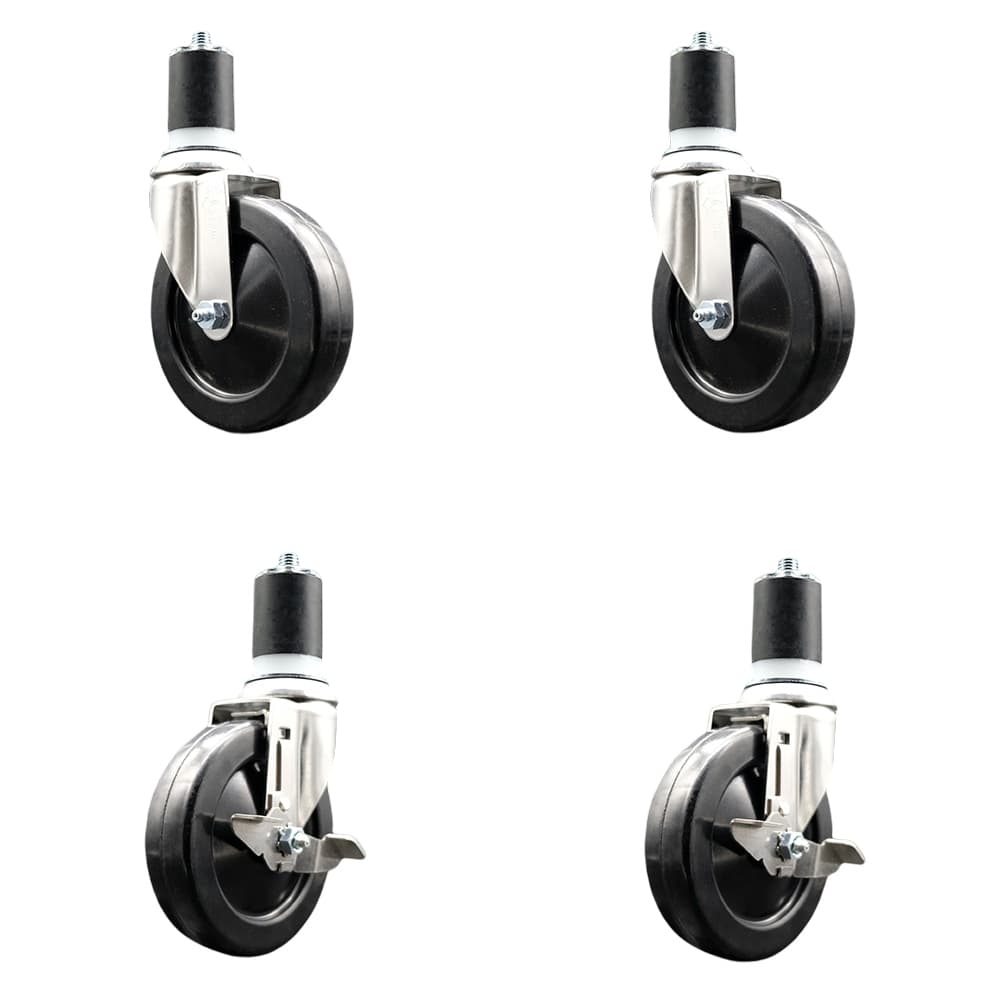

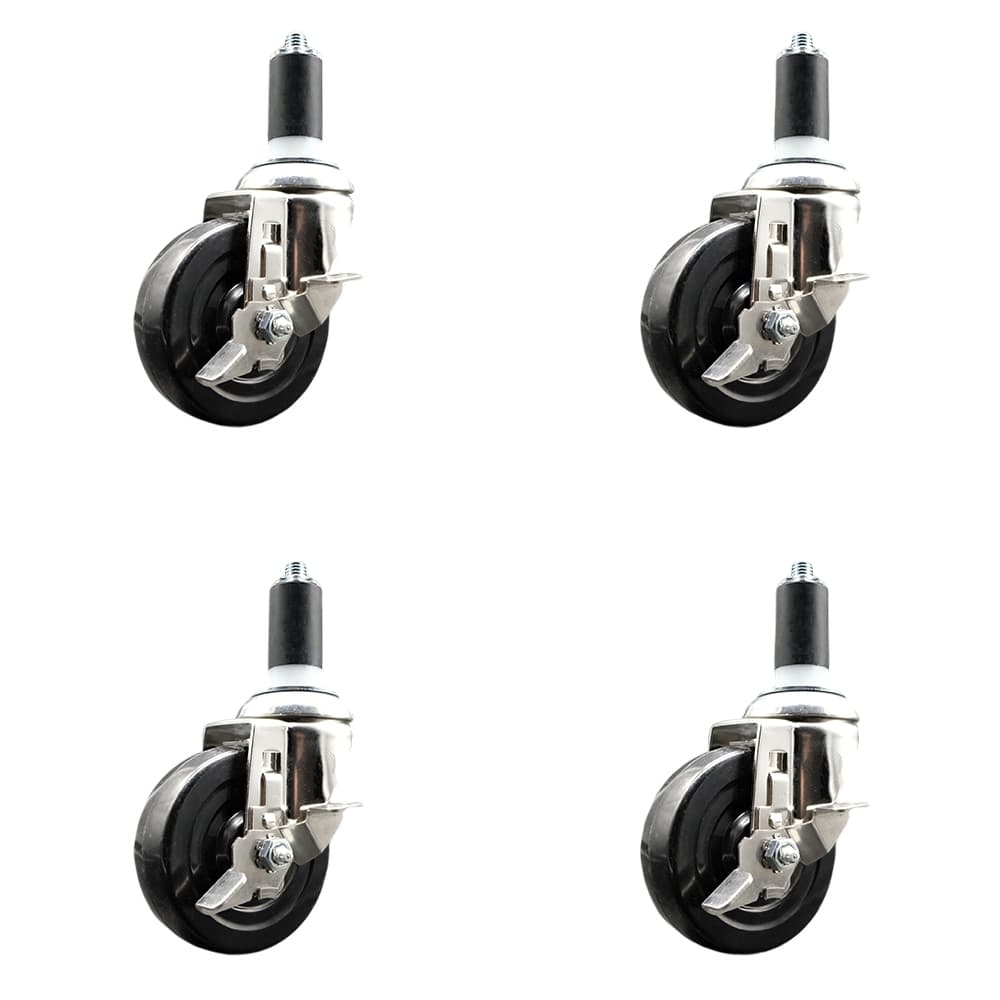

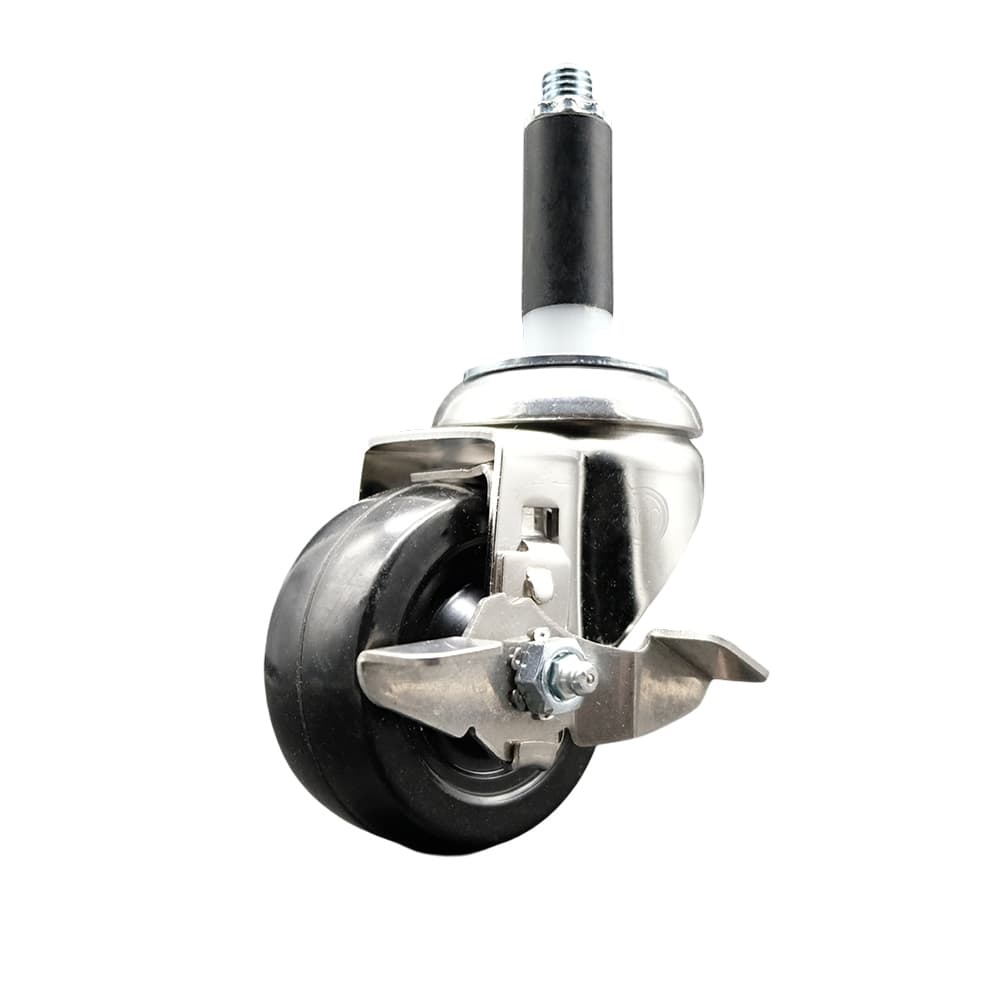

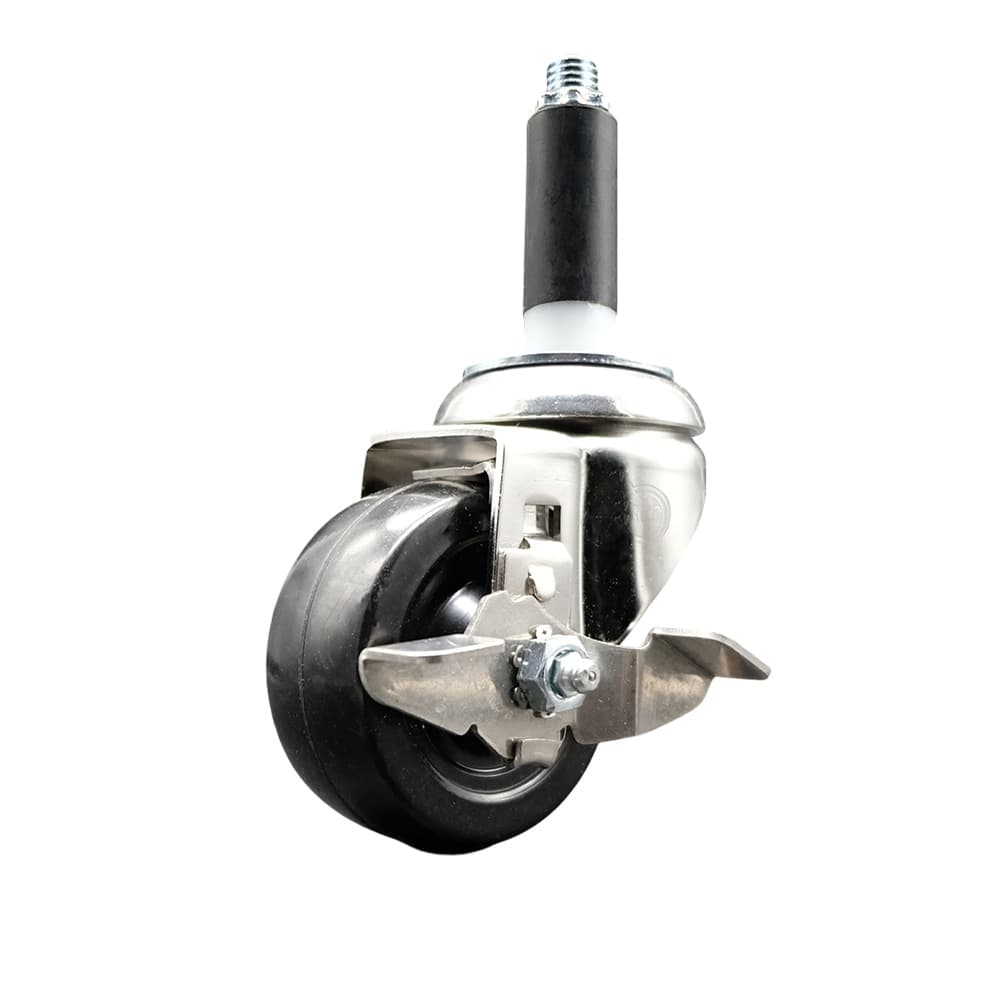

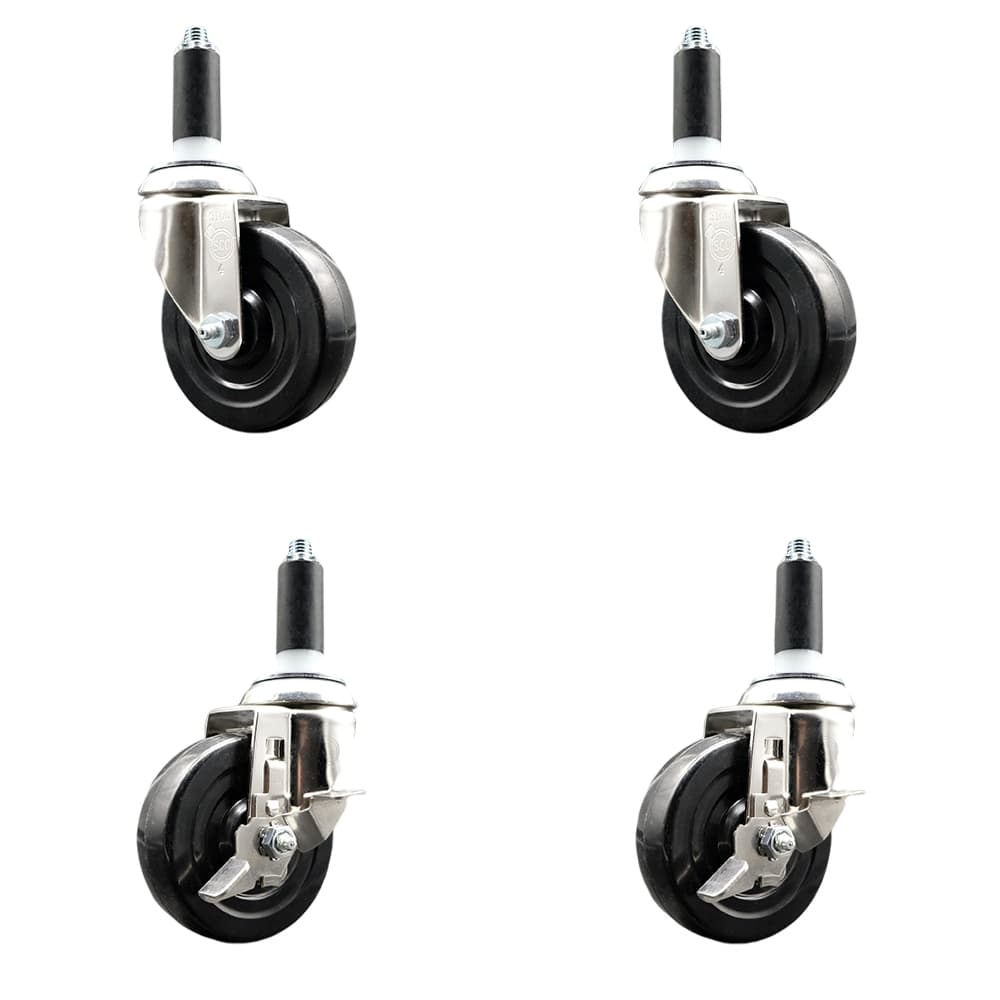

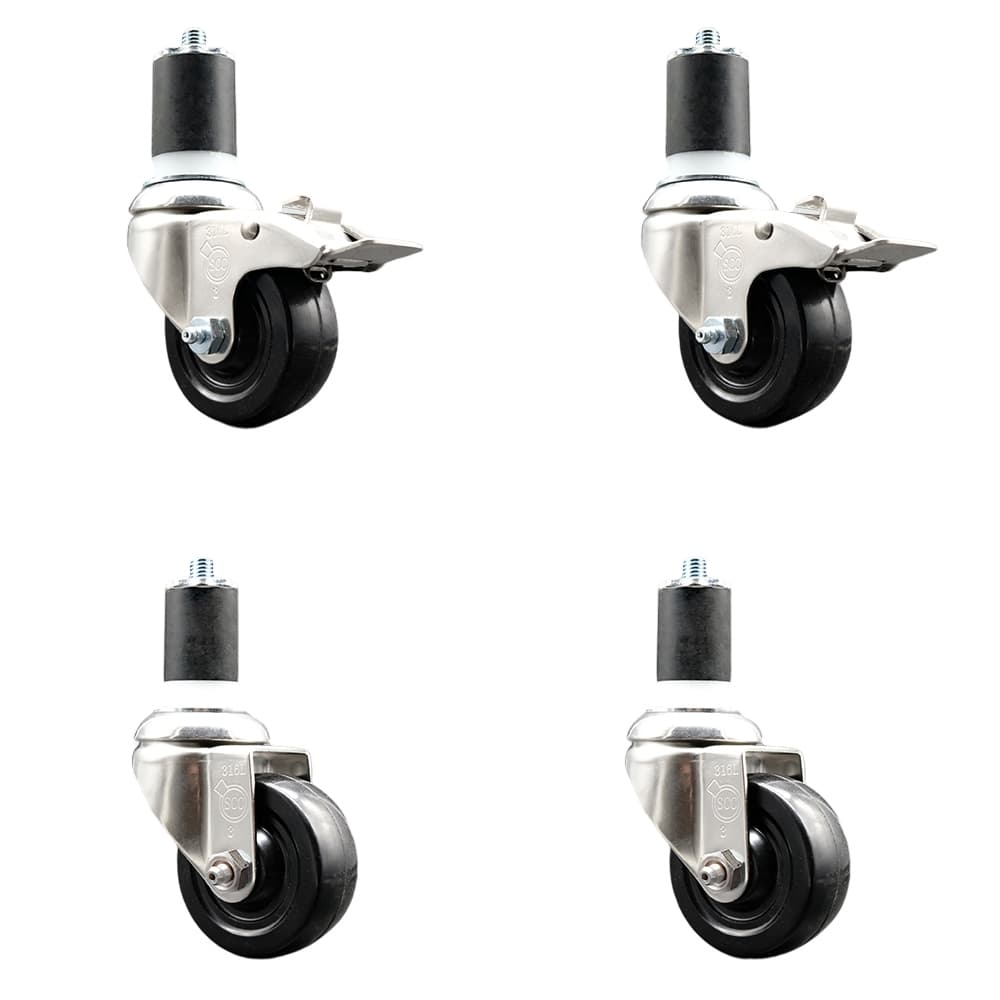

The 10 available diameters are 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", and 1-7/8". Service Caster recommends measuring the tubing's inside diameter before ordering to select the matching stem. Top lock brakes (TLB) lock the wheel tread on the 3", 3-1/2", 4", and 5" sizes. Total lock brakes (TTL), available on all wheel sizes, lock both the wheel and swivel.
