Service Caster SCC-EX20S3514-PHR-PLB-118-4 sku-5363238446

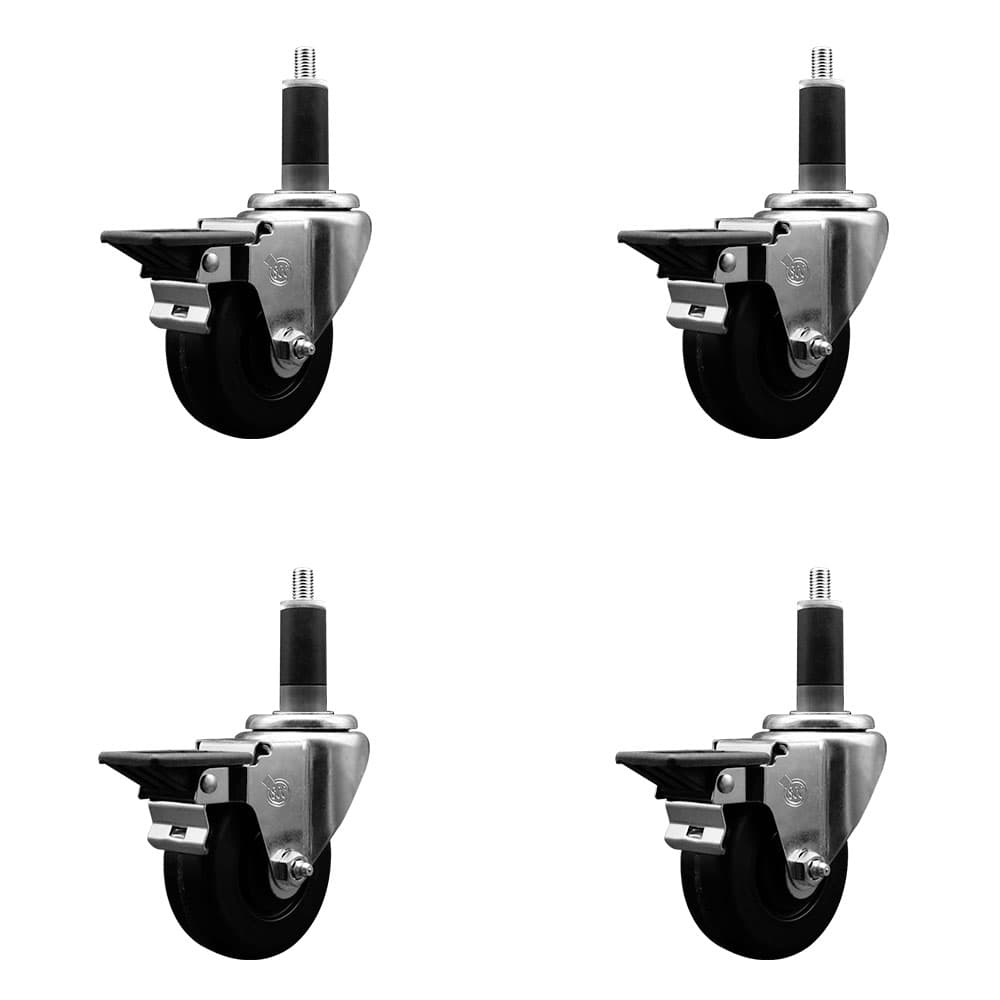

Service Caster Furniture Hardware, model SCC-EX20S3514-PHR-PLB-118-4, SKU sku-5363238446, UPC 734005134834. Color: Other. This phenolic swivel caster set with brake is listed with a 3.5" Wheel, also described as a 3-1/2 Inch wheel, and a 1-1/8 Inch expanding stem.

For Series #20 casters, wheel sizes and mounting heights are 3" at 4-1/8", 3.5" at 4-5/8", 4" at 5-1/8", 5" at 6-1/8", and 6" at 7-1/8". Each listed wheel size has a 300 lbs capacity per caster. The expanding stem is 2-11/16" long and is offered in 10 diameters: 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", and 1-7/8".

Service Caster recommends measuring the tubing's inside diameter to select a stem and contacting them if help or another size is needed. Brake choices are top lock (TLB), total lock (TTL), and posi lock (PLB). TLB and PLB lock the wheel; TTL locks both the wheel and swivel.
