Service Caster SCC-EX20S3514-PHR-TLB-114-4 sku-5356394982

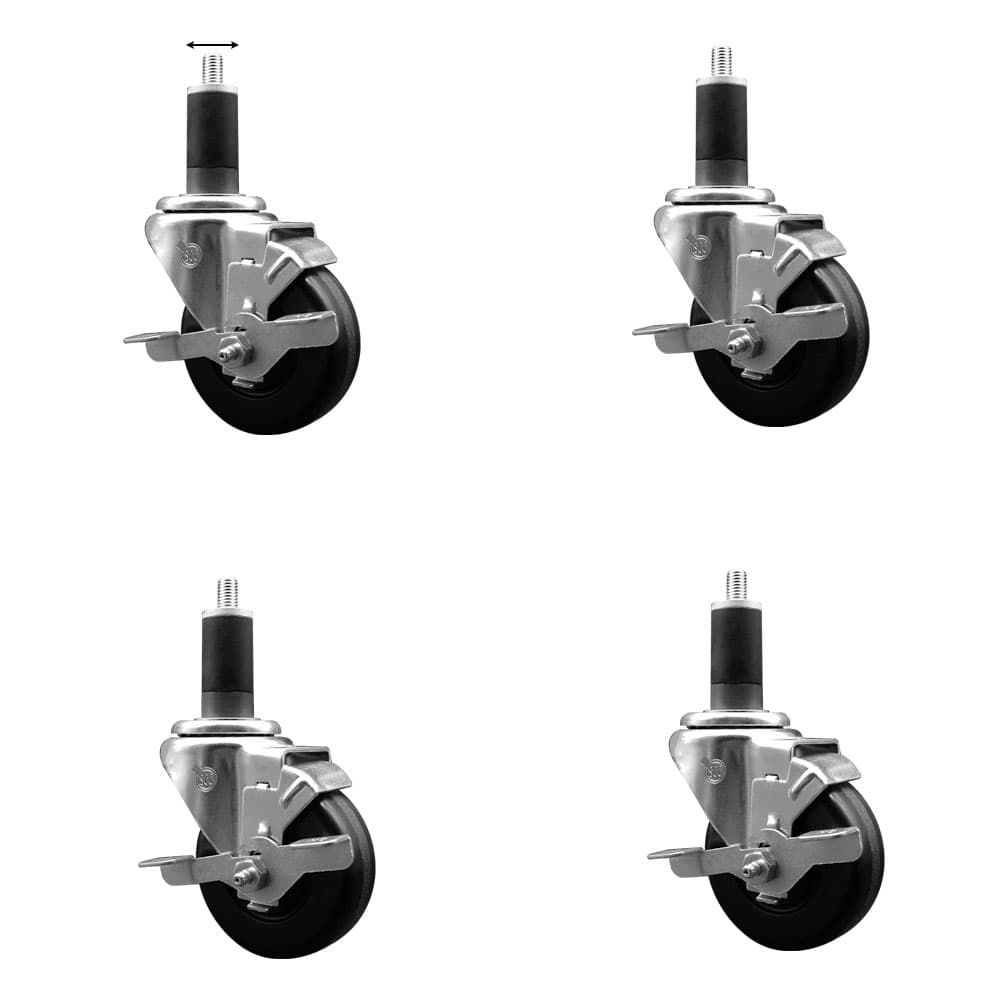

Service Caster SCC-EX20S3514-PHR-TLB-114-4 is a Furniture Hardware phenolic swivel caster set with a brake, a 3.5" Wheel, and a 1-1/4 Inch expanding stem. Its listed color is Other (sku-5356394982; UPC 734005134322). Series #20 phenolic casters have these wheel sizes and mounting heights: 3” Wheel, 4-1/8”; 3-1/2 Inch wheel, 4-5/8”; 4” wheel, 5-1/8”; 5” wheel, 6-1/8”; and 6" wheel, 7-1/8".

Each 3", 3.5", 4", 5", and 6" caster has a 300 lbs capacity. The expanding stem is 2-11/16” long and comes in 10 diameters: 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”. Service Caster recommends measuring the tubing's inside diameter before ordering to choose the corresponding stem diameter; customers can call or send a message for measuring help or an unlisted size.

Brake choices are top lock (TLB), total lock (TTL), and posi lock (PLB). TLB and PLB press against the wheel tread to lock the wheel only. TTL presses against the tread and simultaneously locks both the wheel and swivel.
