24V Electric Recliner Motor Linear Actuator Kit Electric Recliner Motor Replacement kit Parts Sofa Recliner Lift Chair Motor Actuator 250mm Stroke Lengh$$Home Decor, Kitchen, & Other

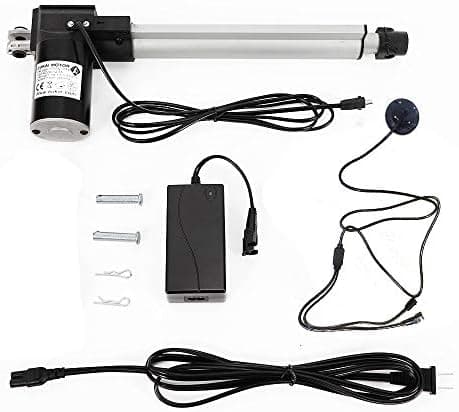

• Product Parameter: This is electric recliner motor Linear actuator kit, Stroke Length: 250mm, Unextended Dimensions: 250mm + 175mm = 425mm, Extended Size: 250mm + 175mm + 250mm = 675mm. Maximum Push / Pull: 100KG / 100KG, No Load Speed: Maximum 40mm / S, Rated Load Rate: 5mm / S (600KG) -40mm / S (30KG). • DC Motor: electric recliner Motor replacement is DC motor, small mounting dimensions, easy to install,compact design,This recliner lift chair motor features a compact design that makes it ideal for many applications either in the me-di-cal or industrial sector. • Durable Material: The electric recliner lift chair motor adopt for Aluminum actuator and durable P-A6 plastic housing,safe and reliable. Noise level 48 dB (A), Actuator Not Loaded. Duty cycle, max 10% or 2 minutes continuous use followed by 18 minutes not in use. • High Performance: 24VDC permanent ma-gnet motor. Thrust up to 1000 N in push. and up to 1000 N in pull. Elegant and compact design with small installation dimensions. Built-in limit switches (not adjustable). Aluminium Outer Tube Ø30 Mm, Aluminium Inner Tube Øø24mm. • Wide Application: This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Minimum installation size: the distance between the push rod and the two holes before and after is extended to =2xs (stroke) +175mm.
