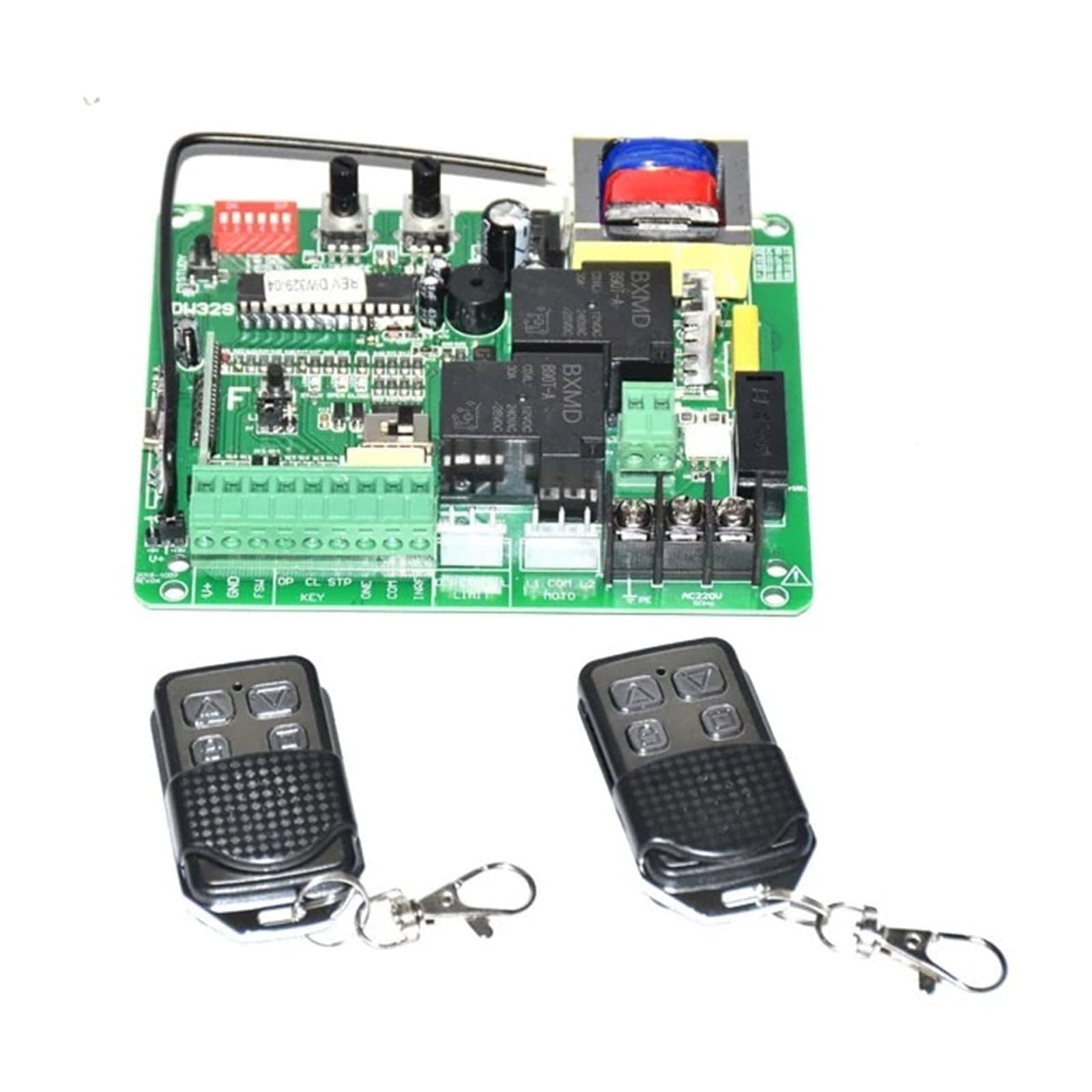

220VAC 370W To 1000W Wing/Sliding Gate Motor Control Board PCB - Electronic Controller Card with Optional Remote

Compatible with wing gate openers, this normally-open control board supports 370W to 1000W motors and is designed for 220v AC operation only (not for other voltages). It does not require a limit switch (magnetic limit switch version not applicable). Remote control is optional; batteries are not included. Note: the on-board receiver is not compatible with other remote controls. Manual is not supplied — provide your email at purchase and we will email the manual. Main features: 1. Single-button operation can execute full commands (open, close, stop). 2. Individual remote controls can be deleted separately. 3. Adjustable motor working time. 4. Programmable auto-close delay. 5. Option to auto-close when power is restored after an outage. 6. Infrared detection connector included. Board connections and controls: 1 - Magnetic limit switch input 2 - Motor wire input 3 - Power supply input 4 - Torque adjustment 5 - Closing force adjustment 6 - DIP switches for multifunction setup 7 - Learn button for programming remotes (press learn, then press any remote button twice to add) 8 - Test button for motor check 9 - Motor direction change 10 - Flashing lamp input 11 - Remote control receiver 12 - Photocell, manual button, keypad and GSM input
