Eugene Color Solar VFD Restored Automotive sku-7220021269

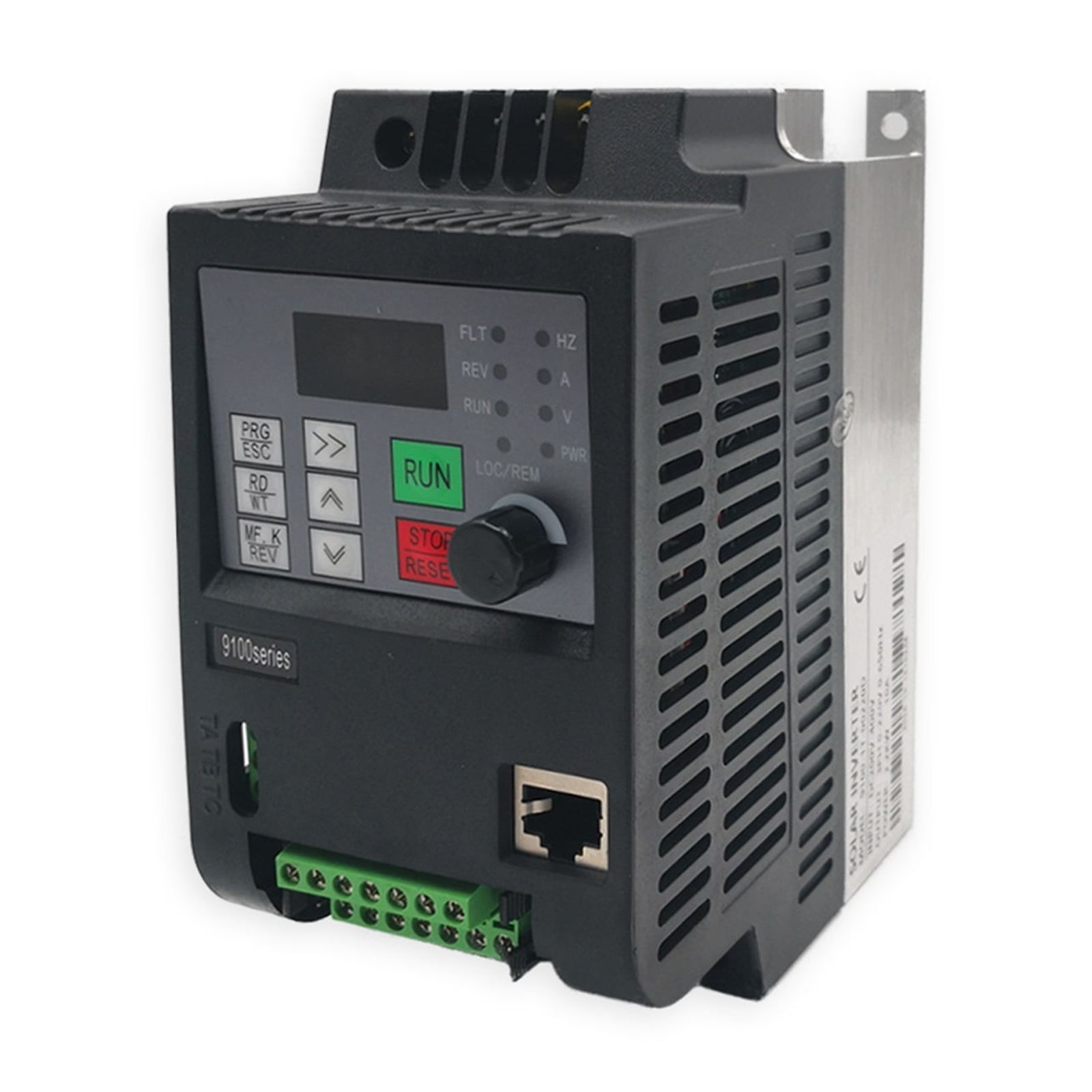

The Eugene Color solar VFD frequency converter, listed under Restored Automotive, has built-in MPPT for driving inductive loads such as motors and controlling water-pump speed. The listing title identifies a 2.2KW (3HP) inverter. MPPT monitors photovoltaic voltage and current to find the maximum power point.

The converter starts when sunlight raises the input to its start threshold and stops when input voltage falls below the shutdown threshold. It protects against short circuits, missing phases, over-current, over-voltage, under-voltage, over-temperature and overload. Use it only with inductive loads.

Solar-panel DC input power must exceed the converter rating, and converter power must be at least equal to the total load power. Follow the product instructions when selecting and wiring the unit; series or parallel panel connections can adjust DC input voltage. For the 220 type, input below 200V triggers a low-voltage alarm or shutdown, while input above 400V triggers voltage-rise suppression.

For the 380 type, those thresholds are 400V and 700V respectively. Approximate automatic start thresholds are 200V for the 220 type and 400V for the 380 type. The 220 type (D1T) accepts DC 200V-400V, with 300V-320V recommended, or single-phase 220±15% at 50/60Hz. It outputs three-phase AC 0-220V at 0-400Hz.

The 380 type (D3T) accepts DC 400V-700V, with 530V-550V recommended, or three-phase 380V±15% at 50/60Hz. It outputs three-phase AC 0-380V at 0-400Hz. Interfaces include 4 programmable digital inputs, AI1 analog input at 0 ~ 10V, AI2 analog input at 0 ~ +5V or a panel potentiometer, 1 open-collector output, 1 relay output and 1 analog output selectable between 4 ~ 20mA and 0 ~ 10V.
