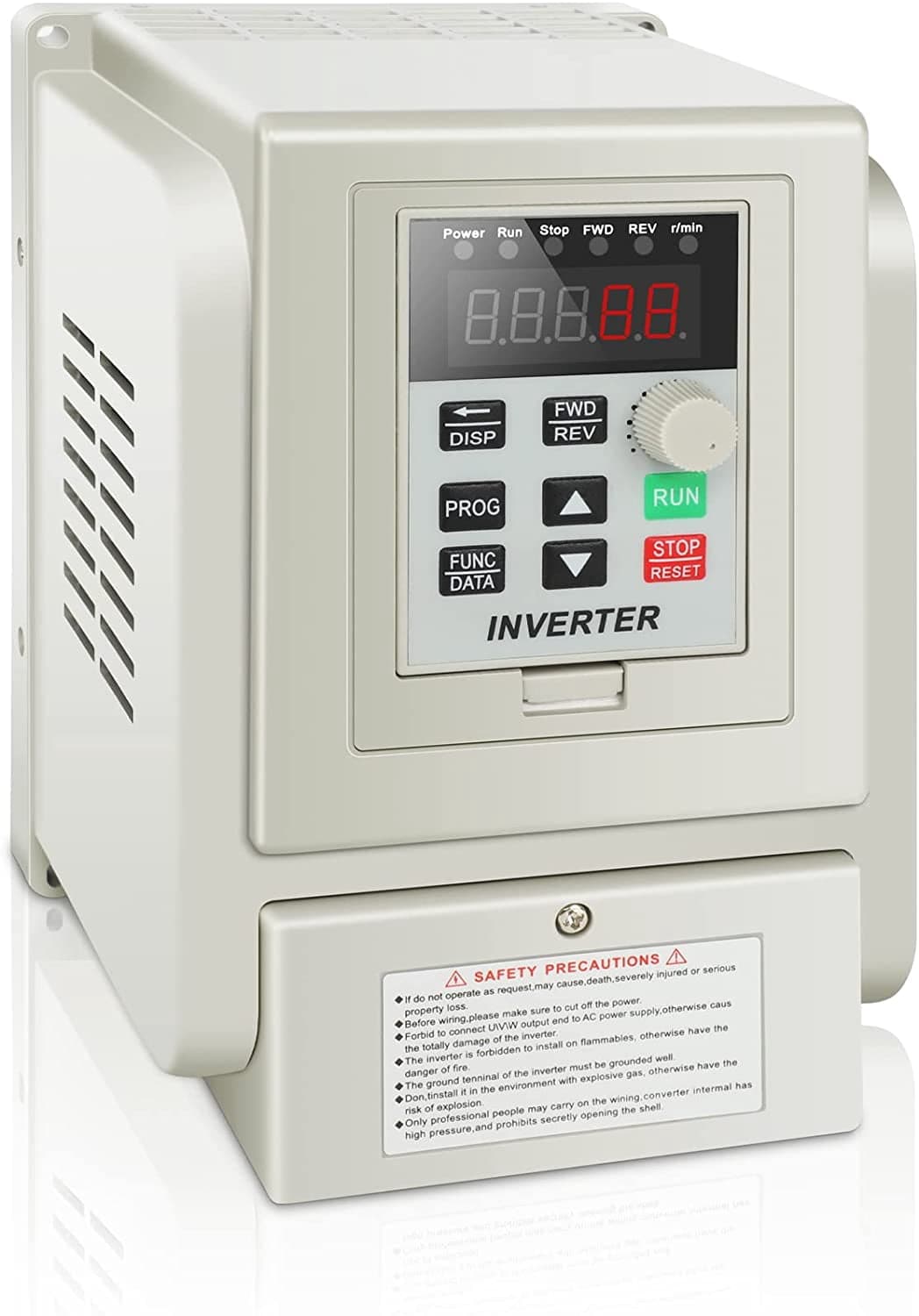

2.2kW (3HP) 12A VFD Inverter — Single-Phase 220V Input to 3-Phase 220V Output Variable Frequency Drive, 0–400Hz for Spindle Motor Speed Control

Overview: Compact variable frequency drive designed to convert single-phase mains to three-phase output for motor speed control. Rated power: 2.2KW 3HP 12A, AC 220V. Ideal for controlling spindle motors and a variety of CNC and automation equipment. Key specifications: - Input: 1 phase, 220V, 50/60 Hz - Output: 3 phase, 220V - Output frequency range: 0-400 Hz - Power / current: 2.2KW 3HP 12A, AC 220V - VFD Dimension: 4.61 x 4.96 x 6.89 inches (L x W x H) Performance and cooling: Built with a high-quality copper coil for improved durability and safety. The enclosure features a multi-vent design that provides ample airflow for faster cooling under load. Protection and controls: The unit is assembled with secure screw fastenings and includes multiple protection functions to ensure reliable operation: Three Anti-Paint Protection Lines, Over Current Protection, Over Voltage Protection. A removable control panel simplifies setup and daily use. Typical applications: Suitable for Spindle Motor, Speed Control, CNC, Drill Press, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines requiring precise motor speed regulation.
