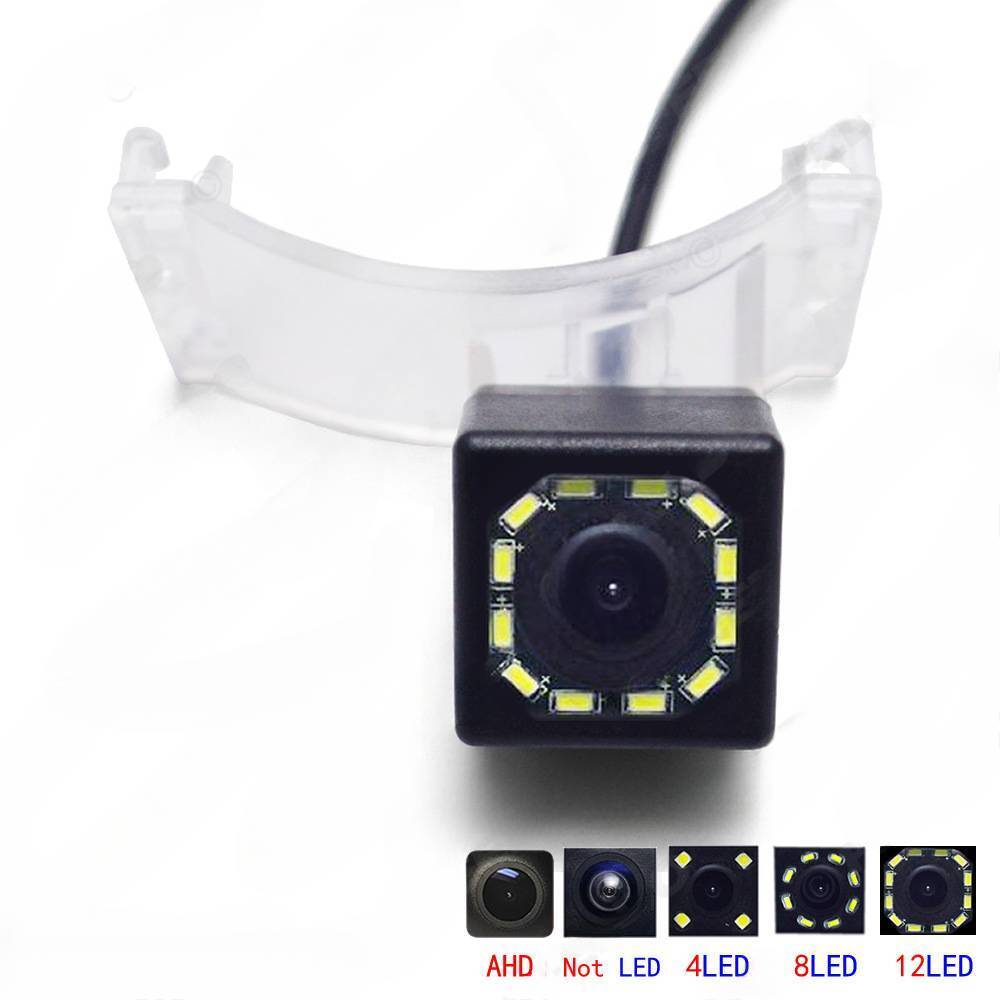

170° HD Rearview / Reversing Camera for Mazda 5 M5 (2011-2012) & CX-9 — HD CCD Backup Camera, NTSC, IP67/IP68
4.7(15 ratings)Compatibility: Suitable for Mazda 5 M5 2011 2012 Suitable for Mazda CX_9 Overview: High-definition reversing camera designed to provide a wide rearview image. Built with an HD CCD image sensor and a 100% glass lens, the unit outputs an effective resolution of 640 * 480 pixels and a horizontal resolution of 480TV cable. Optics & View: Field of view: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V). Night Vision: Support. Lens with LED light options: AHD/without LED light/4LED/8LED/12LED. Imaging & Output: Image sensor: HD CCD. Effective pixel: 640 * 480 pixels. Horizontal resolution: 480TV cable. TV format: NTSC. Video output: CVBS RCA connector (1.0VP-P, 70OHM). Assistance & Image Settings: Parking Guide Line: Support. Reversing Image: Mirror Image. Mirror/Original Switch: No. Wire Switch: No. Low-Light & Power: Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux with infrared). Power supply: DC12V. Power consumption: 120mA. Environmental & Protection Ratings: Operating temperature: -20 ° C to + 75 ° C, RH 95% MAX. Storage temperature: -40 ° C to + 80 ° C, RH 95% MAX. Waterproof grade: IP67/IP68.
