Rui Chuang UMD23M Black One Size 13-in-1 Hub sku-11519715775

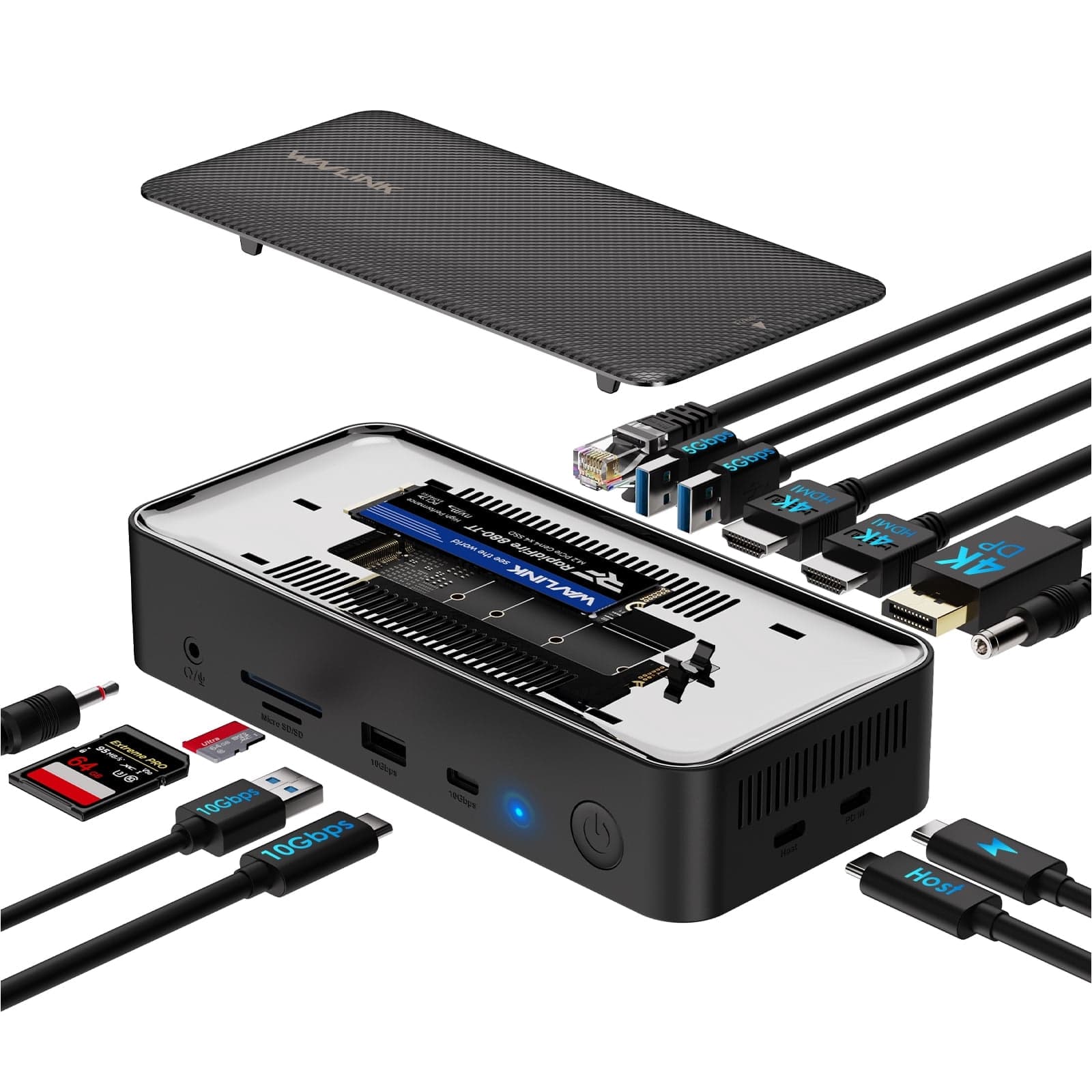

Rui Chuang UMD23M is a Black, One Size 13-in-1 USB-C docking station listed under Computer Accessories as sku-11519715775. It connects to a laptop with plug-and-play setup and includes an M.2 SSD enclosure, 20V DC input, DisplayPort (4K@60Hz), two HDMI ports (each 4K@60Hz), two 5Gbps USB-A ports, Gigabit RJ45 Ethernet, Host USB-C, USB-C PD IN (100W), a 3.5mm audio/mic jack, SD/TF card slots (104 MB/s), and 10Gbps USB-A and USB-C data ports.

It accepts M.2 PCIe NVMe and M.2 SATA drives with B&M-Key connectors. The two HDMI ports and DisplayPort can drive up to three external monitors, with dual 4K@60Hz displays and an additional 4K@30Hz display when the host supports DP1.4 with DSC. Extended and mirrored desktop setups are supported. The enclosure transfers data at up to 10Gbps with PCIe NVMe SSDs or 6Gbps with M.2 SATA drives.

The USB 3.2 Gen2 USB-A port and USB-C data port each run at up to 10Gbps; the other USB-A ports run at 5Gbps for peripherals such as mice, keyboards and printers. SD and Micro SD cards can be read simultaneously at up to 104 MB/s. The RJ45 port provides wired networking. USB-C PD IN supports up to 100W laptop charging if the host Type-C port supports charging.

A PD charger is required and is not included; the laptop's charger can be used.
