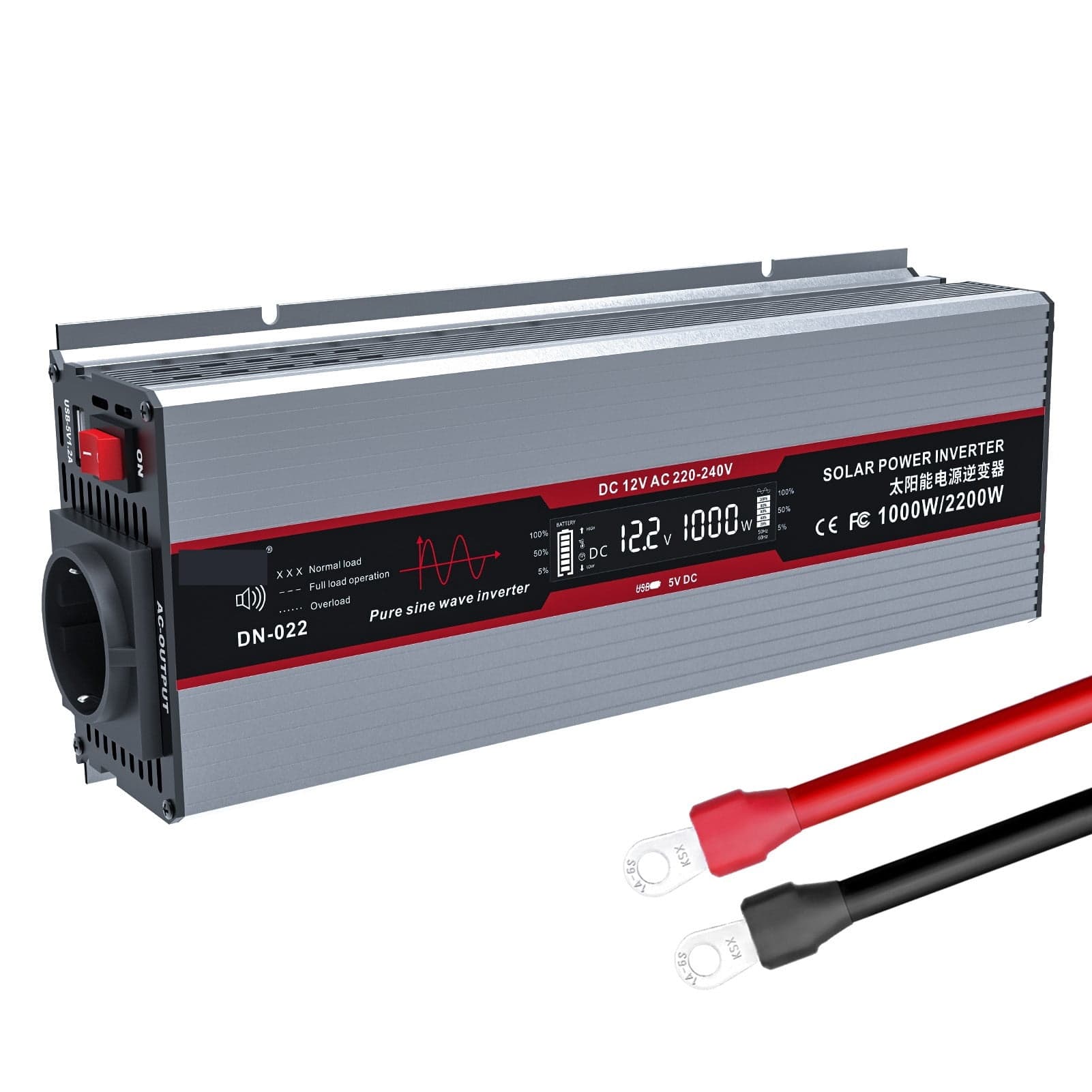

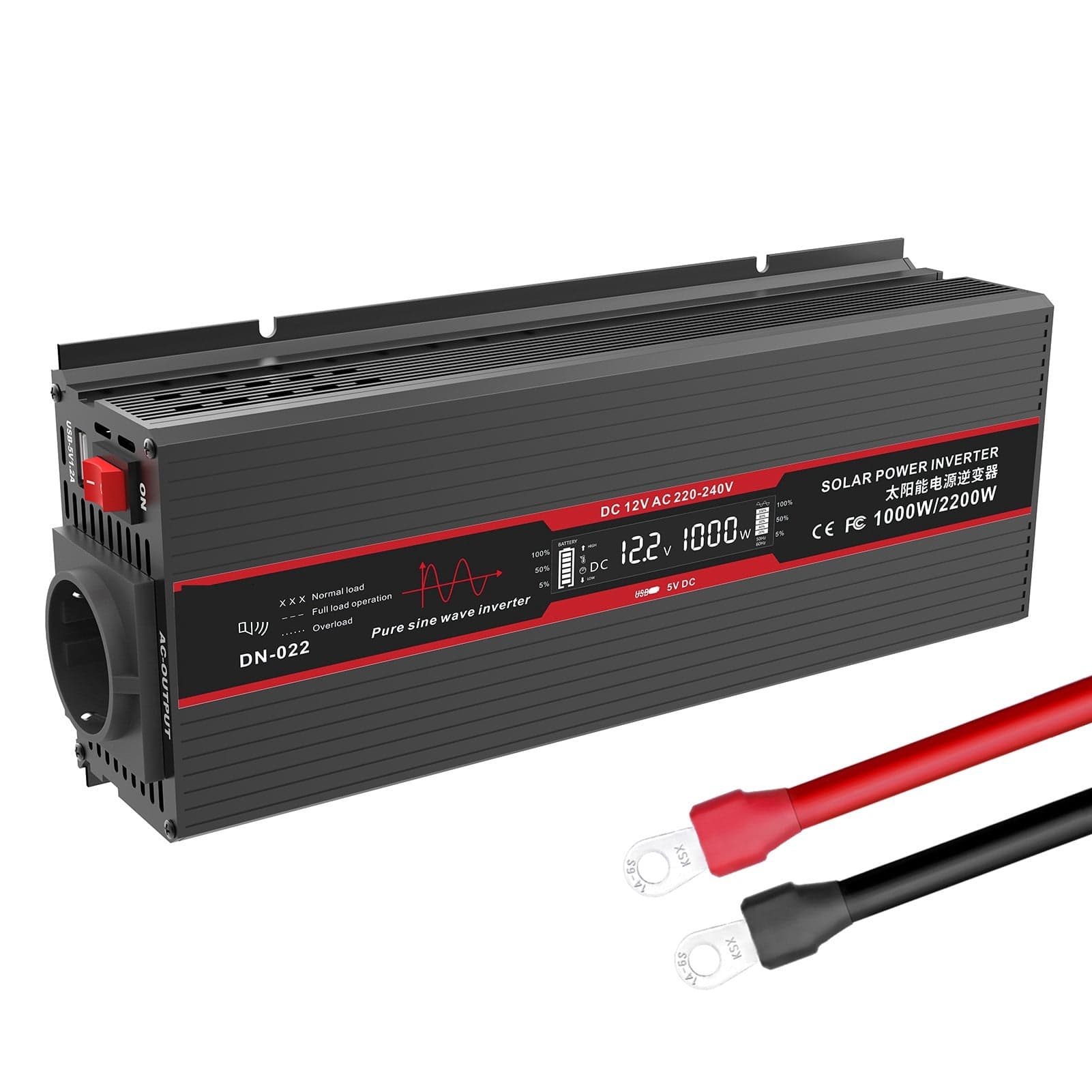

12V Pure Sine Wave Power Inverter — 1000W Continuous (220V) / 2200W Peak with USB 5V 2.1A — Wide Usage

Aluminum alloy enclosure: lightweight with excellent thermal conductivity to rapidly dissipate heat from internal components, ensuring long-term reliable operation. Output quality: true pure sine wave with intelligent filtering to prevent interference and protect connected appliances. High efficiency: conversion efficiency reaches up to 95%, and the unit’s low self-consumption helps extend battery runtime (working efficiency ranges from 80% to 95%). Electrical path: designed for the shortest high-current conversion route to minimize current loss and further boost conversion efficiency. Advanced thermal and magnetic design: uses centralized, dual left-right air ducts for even cooling, lowering MOS tube temperature and improving performance. The design replaces older single-air-duct, multiple-transformer-in-series layouts with a single transformer using vertical multi-layer copper-ring superposition winding to cut copper and magnetic losses, reduce heat, and raise efficiency. Protection and stability: front- and rear-stage double current detection plus multiple protective measures deliver efficient, stable operation and prevent damage to power sources or loads caused by failure of a single component.
