Kemblawolf Front Swing Arm sku-15610374704 722302432135

Kemblawolf's 12'' front suspension swing arm kit is listed under Go Karts Parts & Accessories, SKU sku-15610374704, UPC 722302432135. Intended for DIY modification or repair, the upper and lower swing arm assembly is described as suitable for off-road vehicles, ATVs, quads and go-karts, including 110cc, 125cc, 150cc, 200cc and 250cc vehicles. The kit uses painted iron and rubber.

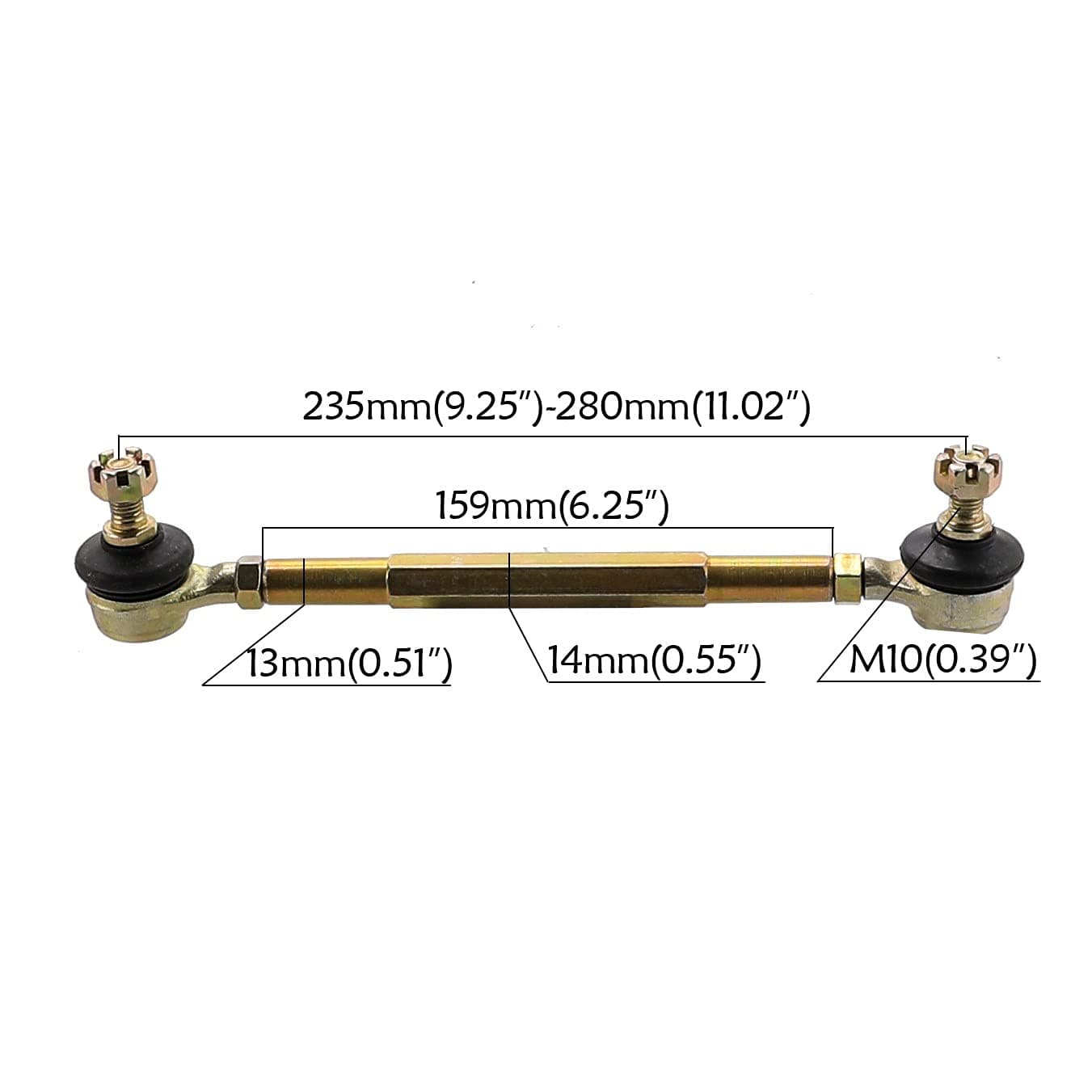

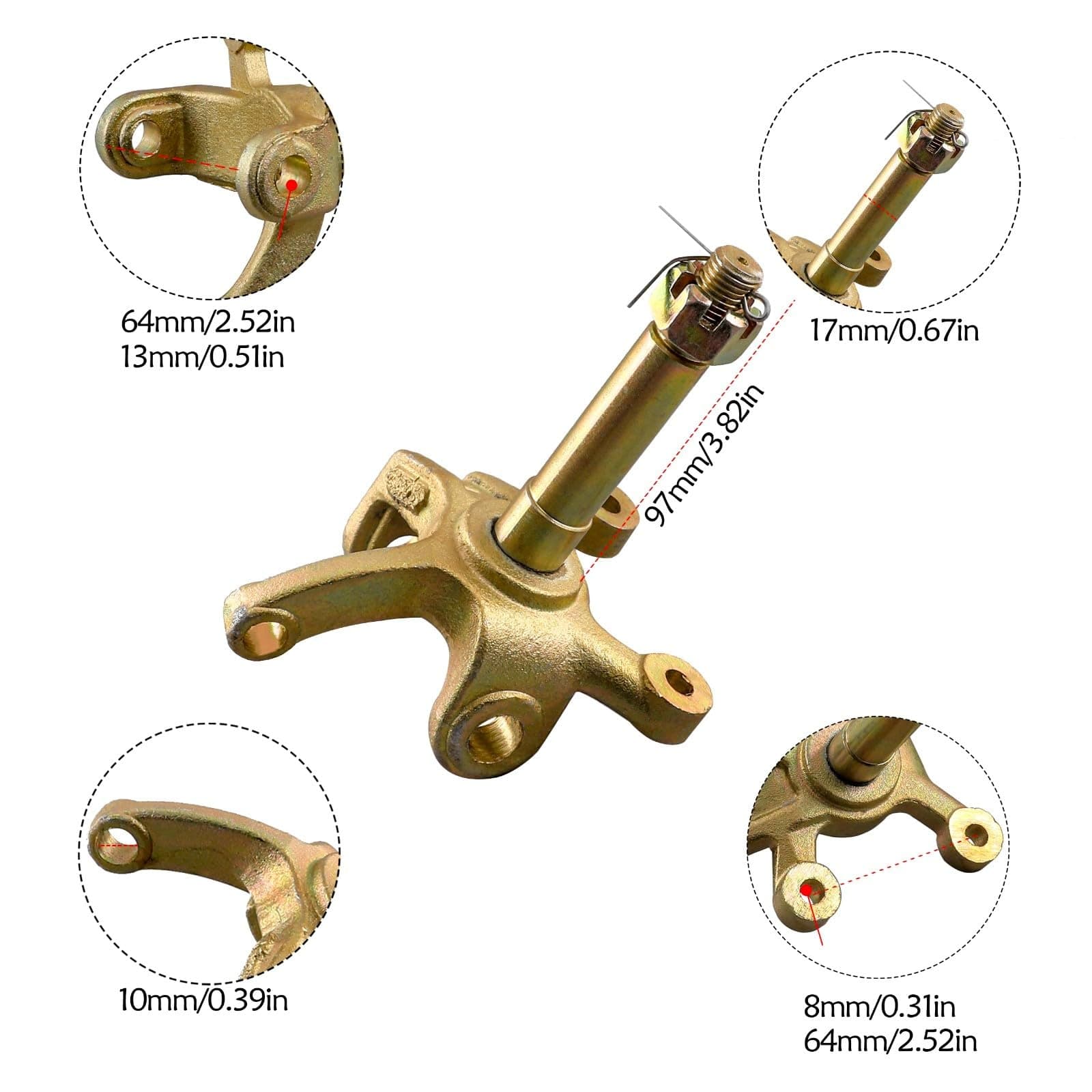

The upper swing arm measures 200mm (7.87") long and 190mm (7.48") wide; the lower arm is listed at 300mm (11.8") long. The specifications also list an upper swing arm width of 235mm (9.25"). The 4-stud wheel hub has a 110mm (4.33") bolt distance. The steering spindle has a 17mm shaft, and the tie rod ball joint has 12mm and 16mm threads.

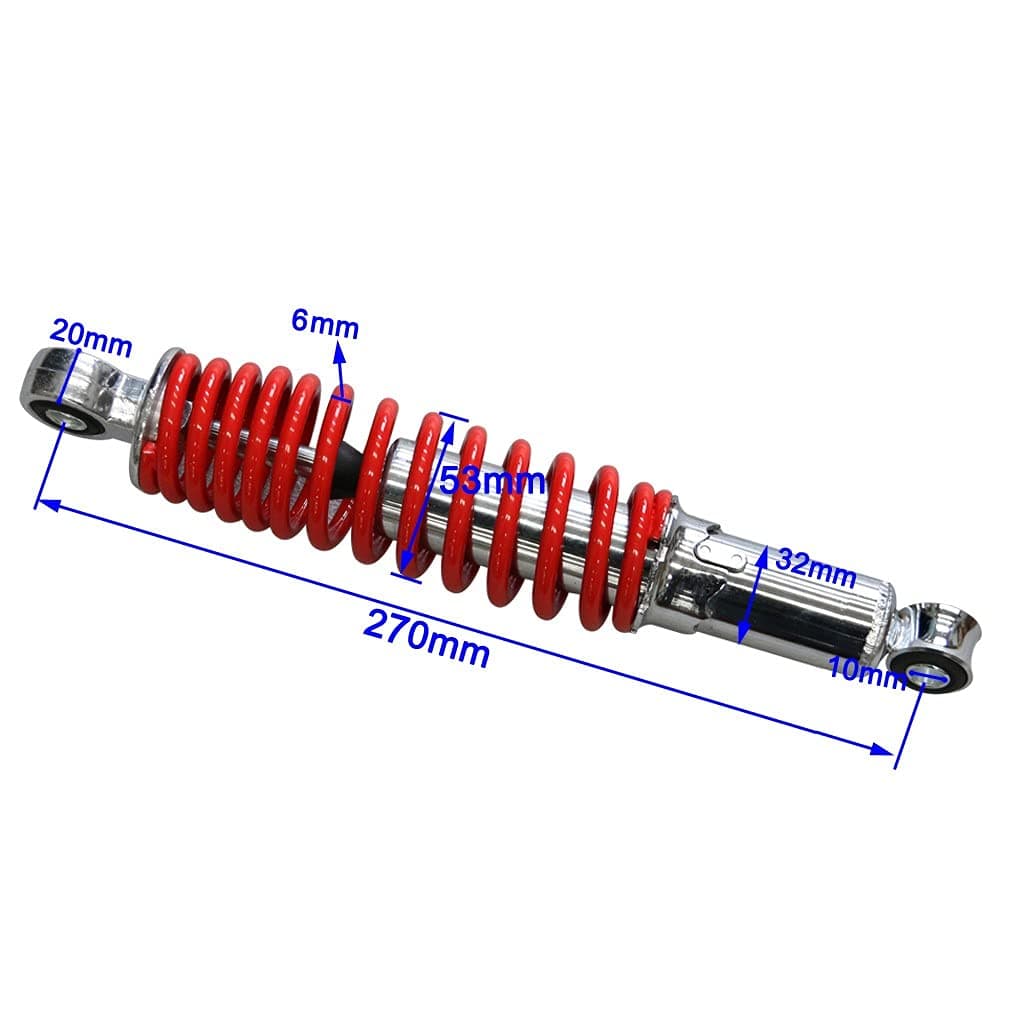

The 6-stud disc rotors measure 130mm in diameter and 3mm thick. For the hydraulic twin-disc brake caliper master cylinder, the caliper hole distance is 63mm (2.5"); hose lengths are 890mm (35") and 505mm (19.9"). The package contains 2 upper swing arms, 2 lower swing arms, 2 wheel hubs, 2 steering spindles, 2 tie rod ball joints, 2 rotors, 1 hydraulic twin-disc brake caliper master cylinder, 2 tie rods and 2 shocks.

The kit is described as easy to assemble and disassemble.
