Unbranded Orange Chain Hoists sku-5461457917 110V 13FT

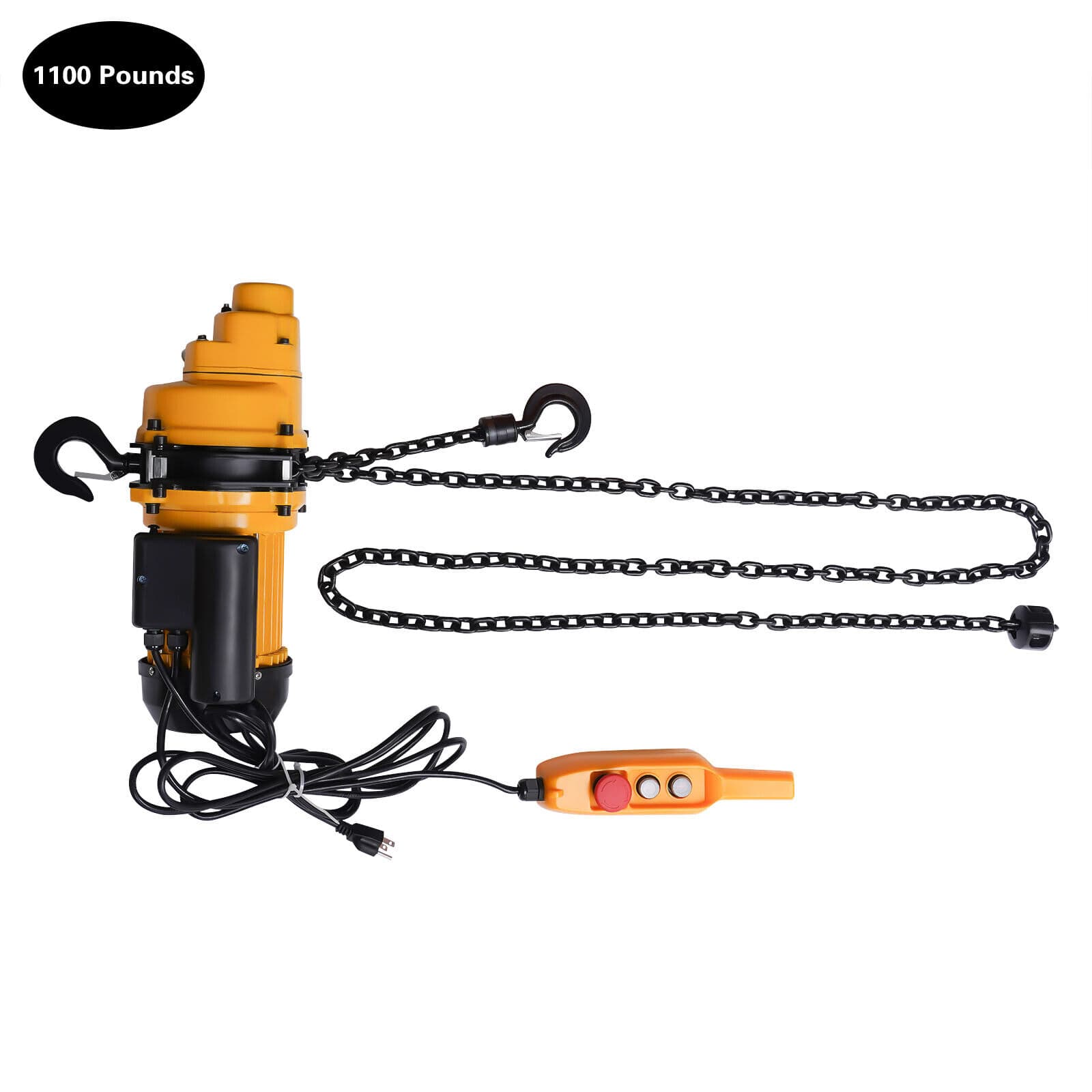

Unbranded Orange electric Chain Hoists unit, sku-5461457917; UPC 764909493348. This modern-style, single-chain hoist has an aluminum-alloy housing, a 20Mn2 chain, a manganese-steel hook and a pure-copper motor. Motor protection is IP55 and insulation class is F. It uses an American-standard plug, a wired control handle, 110V and 1300W. Chain diameter is 6.3mm/0.25inch.

Maximum load is 0.5T/1100lbs; lifting speed is 6m/min (19.7ft/min), lifting height is 4m/13ft, and handle-switch wire length is 3m/10ft. Gross weight is 24kg/53.33lbs. Package dimensions are 51*28.5*39cm/20.9*11.22*15.35inch; machine body dimensions (L*H) are 42*15cm/16.54*5.91inch.

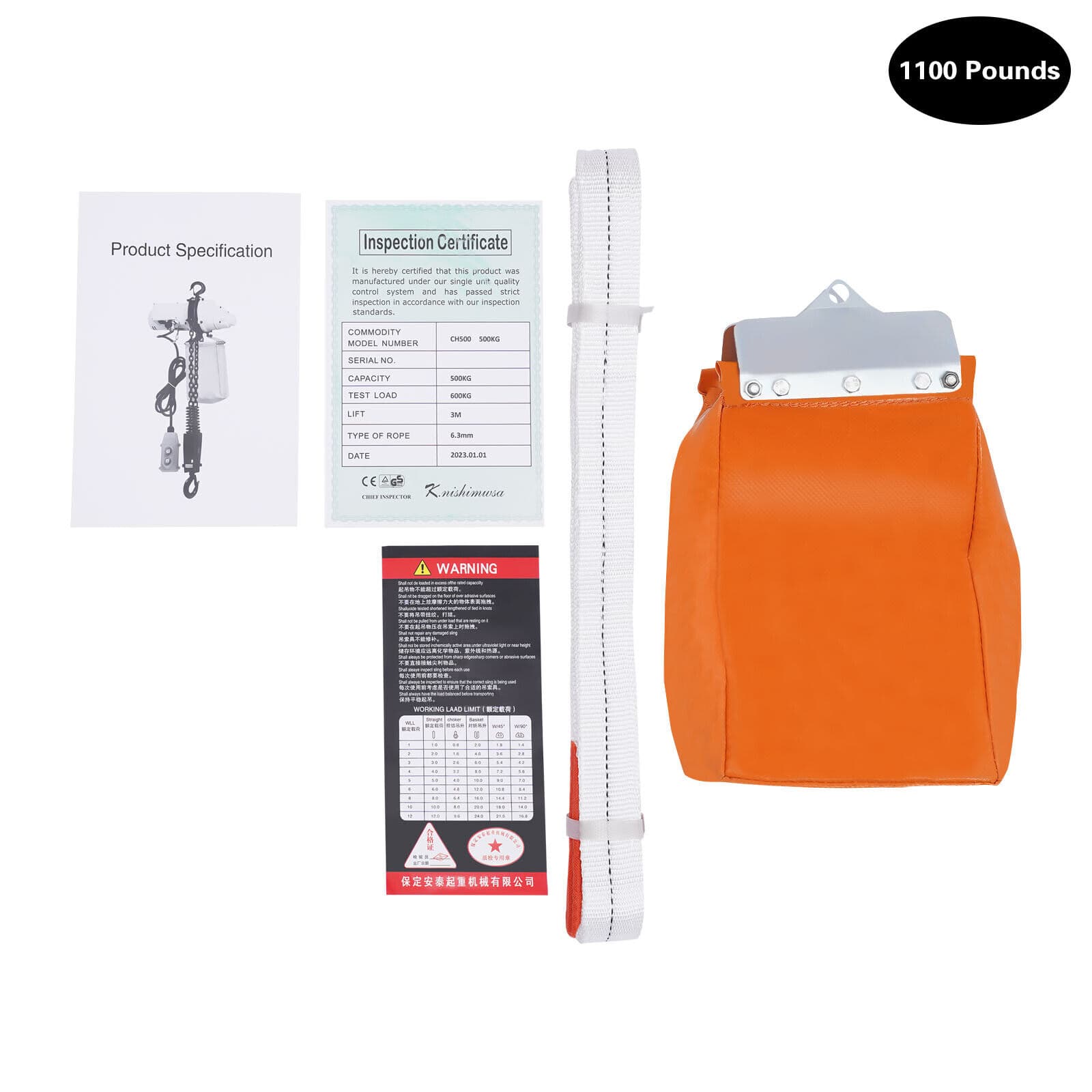

The package contains 1 electric chain hoist, 1 lifting strap, 1 chain bag, 1 English manual, 1 English inspection certificate and 1 Chinese-and-English warning notice. The listing title also describes it as a 1100LBS, 1-phase, 13FT hoist. If an object is too large or cannot hang directly from the hook, tie longer webbing around it and hook the webbing.

Warn everyone nearby before lifting or moving a heavy object; set up a lifting area if needed to keep uninvolved people out. Do not leave a raised load unattended for long periods, exceed 1100 lbs, use multiple hoists on one load, pull a load horizontally, operate with a bent or twisted chain, or jerk a chain that has stopped moving. Stop immediately and troubleshoot if the chain does not move.

Do not throw the hoist. For a uniformly distributed work cycle, maximum operating time is 25% per hour, with up to 150 starts per hour. For infrequent use, it can run for 30 minutes from a cold start, with a maximum of 200 starts per hour. Read the manual's safety instructions before use. Lighting may cause slight color differences; allow a 1-3cm manual-measurement error.
