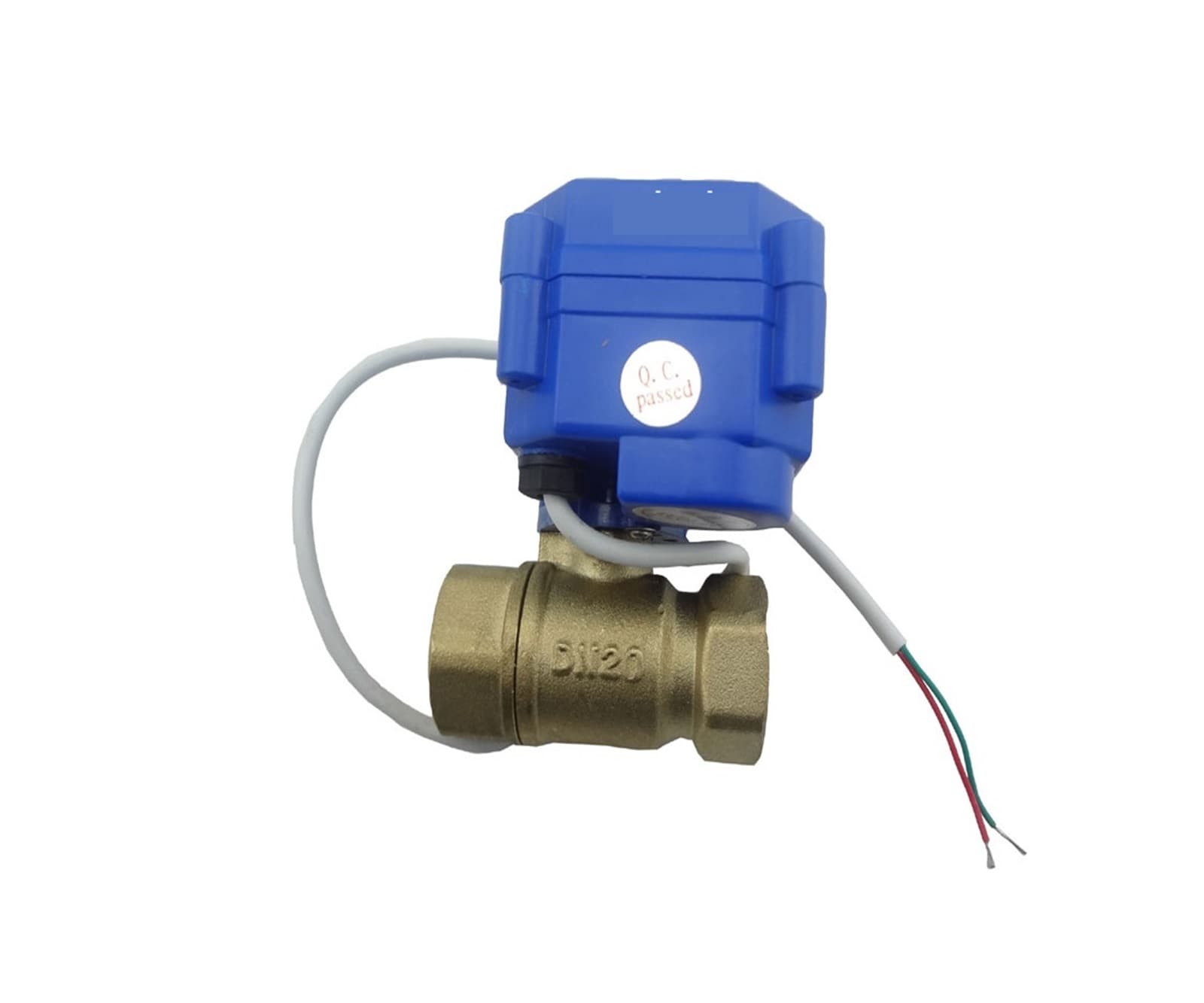

10pcs/lot Motorized Ball Valve G3/4" DN20 (reduce Port) 2 Way 12VDC CR04, Electrical Valve

Description: This listing includes 10pcs of motorized ball valve DN20(reduce port), 12VDC, 2 way, CR04 Thread size: DN20(G3/4", BSP), flow hole size: 15mm Application: 1.HVAC 2.Water treatment 3.Chemical process 4.Small equipment for automatic control 5.Replacing solenoid valve, particularly when solenoid cannot work reliably Features: 1).Smart shape,Perform reliably, large output torque, as long as 50000-100000 times. multi-angel assembling,convenience for all kinds of requirements. 2).Float ball design,no leak, most suitable for heavy dirt and long time no action. 3).The conditions that solenoid valve can not be worked. 4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type) 5). High protection class, can be worked in moist conditions. Technical Parameter: Nominal Size Pressure Body Medium temperature Enclosure DN20(reduce port) 0-1.0Mpa Brass ball valve < t 100 Cel. Degrees IP65 Work voltage Input power Working current nominal torque Open/Close time DC12V Max. 4W 60-80mA 2N*M 5 second *Wire type: CR04 CR04 Wiring diagram (power off return) 1.SWclosed,thevalveopen,gettingtheposition,poweroffautomatically,thevalveremainsfullyopenposition. 2.SWopened,thevalveclose,gettingtheposition,poweroffautomatically,thevalveremainsfullycloseposition. 3.Power is the connection to 12VDC power, there's capacitor as the backup power in the valve.
