0-5/0-12/0-24/0-36/0-48 40A/17A/10A/6.5A/5A Adjustable DC Switch Power Supply, Fully Adjustable ,Safe Reliable to Use

Name: 0-5/0-12/0-24/0-36/0-48 40A/17A/10A/6.5A/5A Adjustable DC Switch Power Supply, Fully Adjustable ,Safe Reliable to Use
Brand: Blissphere
SKU: prod_c9a901d76870c818df6b5399
Price: 64.11 USD
Availability: InStock

No rating yet(0 ratings)

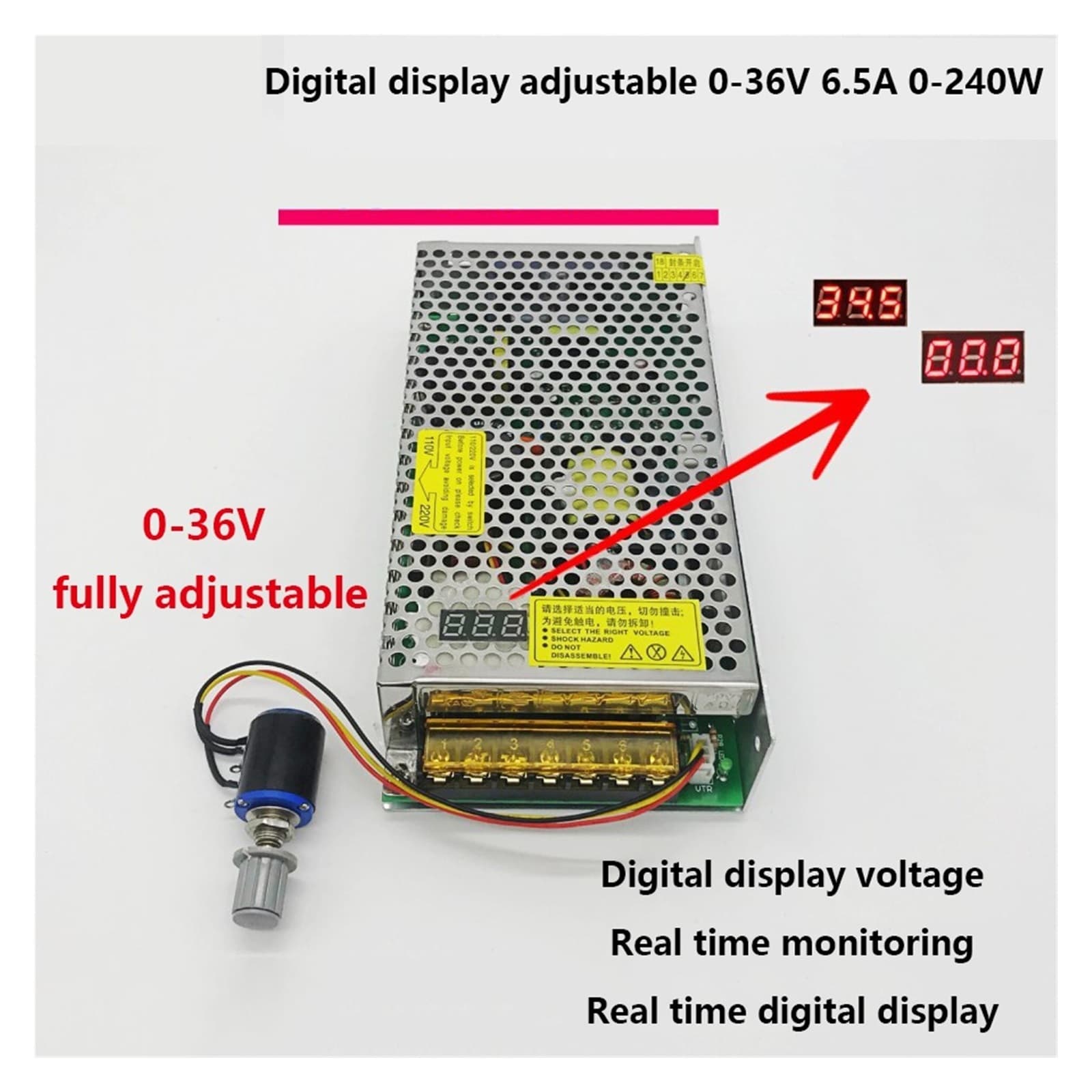

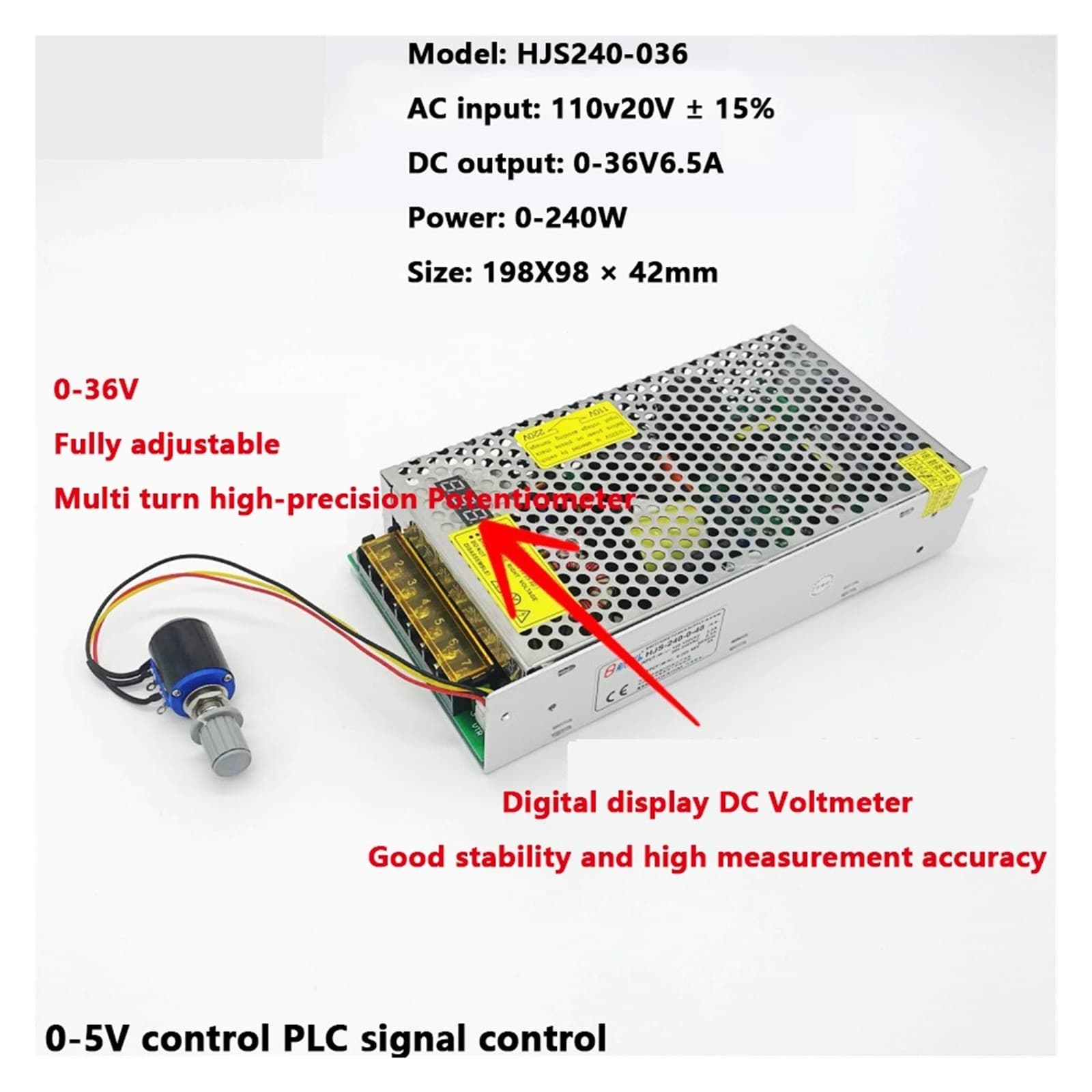

Adjustable regulated power supply with stable and reliable performance, continuously adjustable DC output voltage from (0-5,40A) (0-24,10A) (0-36,6.5A) (0-48,5A), high adjustment accuracy, 0-5V signal control voltage, power 0-240W 1. Technical performance indicators 1.

Output voltage range: 0-5 continuously adjustable (adjustable to 6), output current: 40A Output voltage range: 0-12, continuously adjustable (adjustable to 15), output current: 17A Output voltage range: 0-24, continuously adjustable (adjustable to 27), output current: 10A Output voltage range: 0-36, continuously adjustable (adjustable to 39), output current: 6.5A Output voltage range: 0-48, continuously adjustable (adjustable to 50), output current: 5A 2.

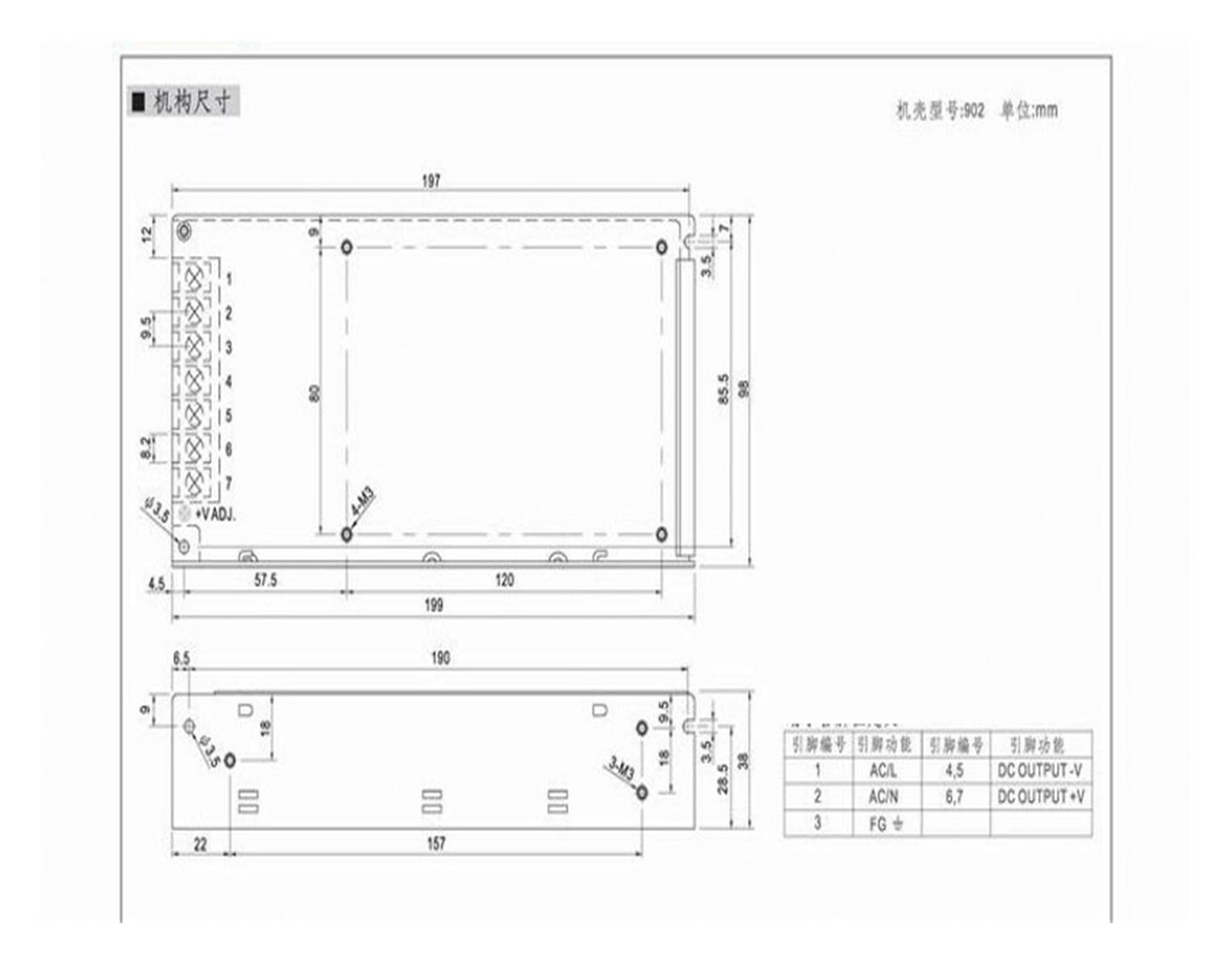

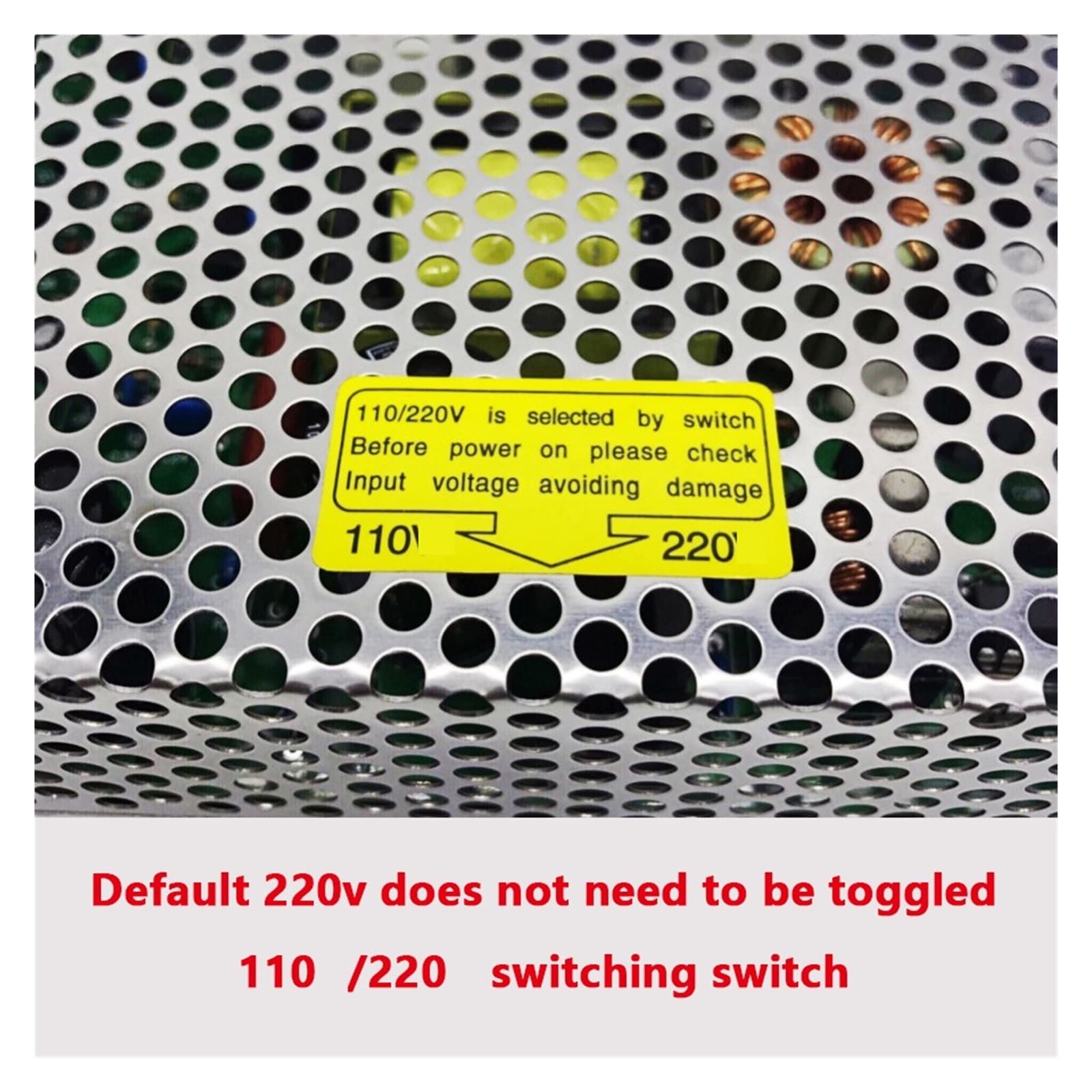

Ripple voltage; Not greater than 100mV 3. Equivalent internal resistance for voltage stabilization: not greater than 0. O5 4. Voltage regulation rate: 5. Equipped with short circuit, overload protection, and automatic recovery functions Input voltage: AC110V/220V ± 15% Rated power: 200W 240W Product size: 199 × 98 × 42mm Instructions for use: Usage: Mainly used for various DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electrolysis electroplating speed regulation, scientific research testing, student experiments, etc., with a wide range of applications.

Special attention: When using inductive loads such as motors and fans, please pay attention to the starting current parameter of the motor. This parameter should not be higher than the operating current of the power supply, otherwise it may cause damage to the power supply.

Therefore, a higher current power supply should be selected, or a soft start protection circuit should be equipped for the motor to absorb the impact current. (Power formula) Voltage X Current=Power:For example, if a 12V10A device is connected, the power is 120W, and if a 24V10A device is connected, the power is 240W Related Products:switching power supply,12v 5v power supply,arcade power supply,bench power supply,ham radio power supply,12v power supply,ac/dc adapter,adjustable power supply,dc power supply variable
