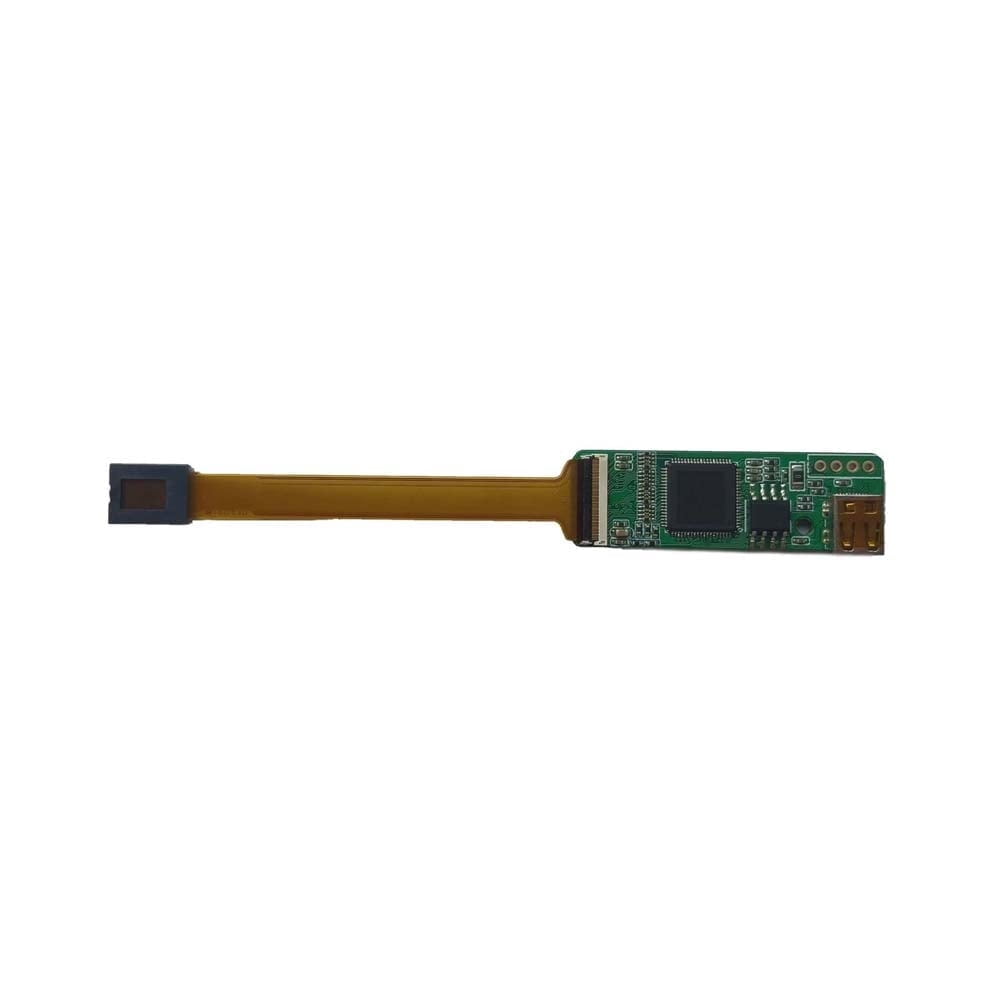

0.23" Micro OLED Microdisplay 640x400 Full-Color AMOLED for AR/VR (HDMI Controller Included)

Overview: Compact 0.23-inch full-color Micro AMOLED panel with 640x400 resolution designed for AR/VR headsets and other smart optics. The display is extremely thin and lightweight, consumes little power, and delivers high contrast and brightness suitable for consumer, industrial and military applications. Key specifications: - Display Type: OLED - Display Size: 0.23" - Resolution: 640*400 - Display Color: Full color - Pin No: 51P - Brightness: 800 cd/m2 - Interface Type: parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input - Driver Board: HDMI Board Performance and features: - Active-matrix color OLED microdisplay (Micro AMOLED) with on-chip driver - Uses single-crystal silicon transistor technology for the drive circuitry - High resolution 640 (RGB) x 400 with a 60Hz frame rate - Contrast Ratio: 100000:1 - Brightness up to 800 cd/m2 - Small footprint, very thin profile and low power consumption—ideal for AR glasses, VR headsets and other compact smart devices Mechanical & environmental: - Panel Size: 15.6 x 13.6 x 0.2 (mm) - Active Area: 8.143x 6.146 (mm) - Operation Temperature: -10℃~70℃ - Storage Temperature: -30℃~80℃ What’s in the box: - 0.23" Micro oled display x1 - Adapter HDMI Controller Board x1 - Adapter HDMI cable x1 - Magnifiering Prism Lens x1
