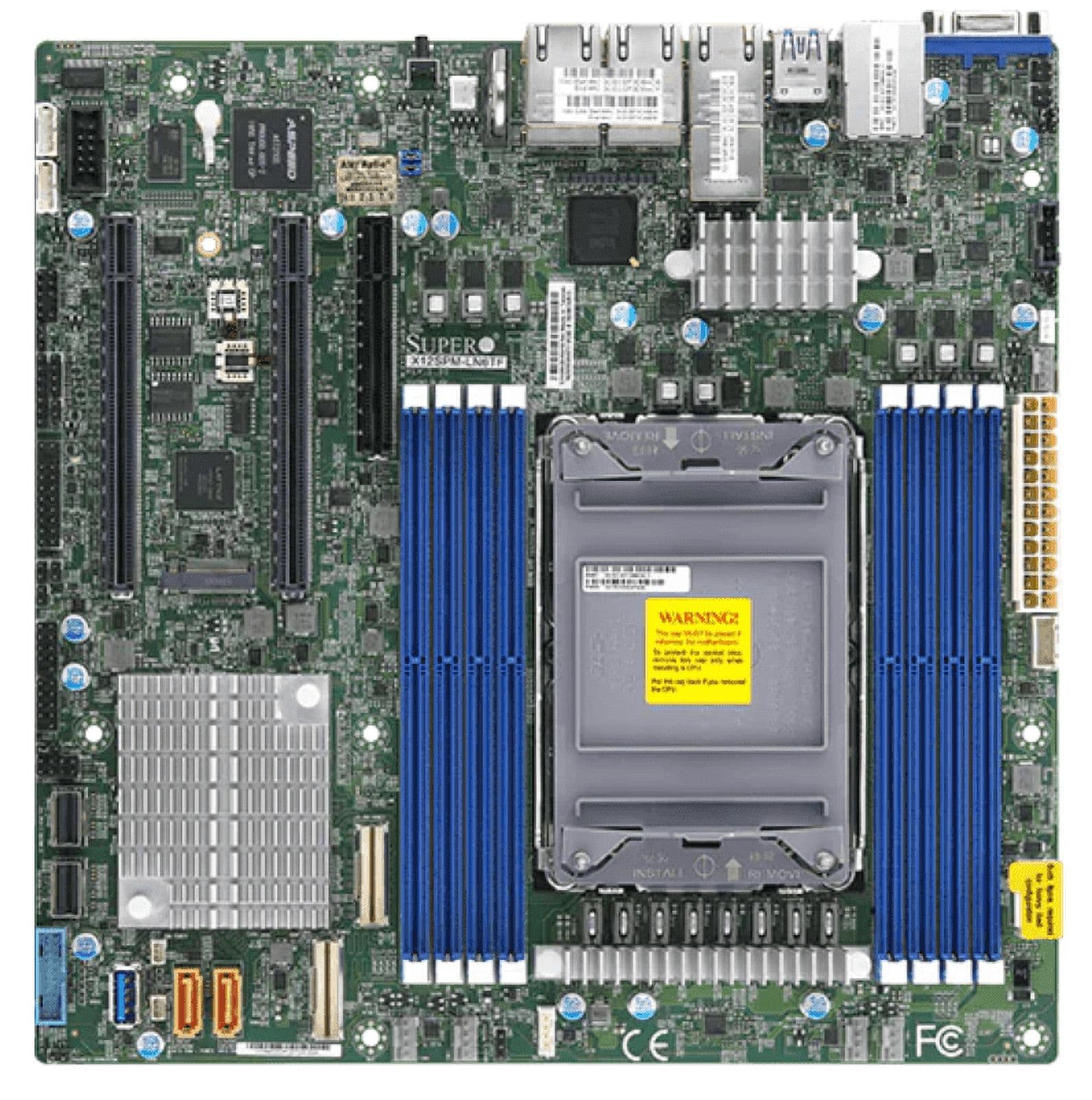

*NEW* Supermicro X12SPM-LN6TF microATX Server Motherboard — Single LGA-4189 (Socket P+) for 3rd Gen Intel Xeon Scalable, DDR4 — Full Warranty

Overview: Supermicro X12SPM-LN6TF is a microATX server motherboard built for 3rd Gen Intel® Xeon® Scalable processors with a Single Socket LGA-4189 (Socket P+) design. The board supports CPUs with TDPs up to 270W and is based on the Intel® C621A chipset. Memory: Equipped with 8 DIMM slots, this board accepts up to 2TB 3DS ECC RDIMM at DDR4-3200MHz and up to 2TB 3DS ECC LRDIMM at DDR4-3200MHz. It also supports up to 2TB Intel® Optane™ Persistent Memory 200 Series. Expansion and NVMe: Expansion options include 1 PCIe 4.0 x8 and 2 PCIe 4.0 x16 slots alongside 4 PCIe 4.0 NVMe x4 interfaces. Additionally, there are 4x NVMe ports delivered via a SlimSAS connector. M.2 and Storage: A single M.2 slot provides SATA or PCIe 3.0 x4 connectivity. M.2 Form Factor support: 2280, 22110. M.2 Key: M-Key. Onboard storage is managed by the Intel® C621A controller, offering 10 SATA3 (6 Gbps) ports with RAID 0,1,5,10 support. Networking: Network connectivity includes Quad LAN 1GbE handled by Intel® I350-AM4 and Dual 10GBase-T ports using the Intel® X550 controller. I/O and Power: The motherboard supports 12V DC power input. USB connectivity consists of 5 USB 3.2 Gen1 ports (2 rear, 1 Type-A, 2 via header) and 6 USB 2.0 ports (2 rear, 4 via headers).
