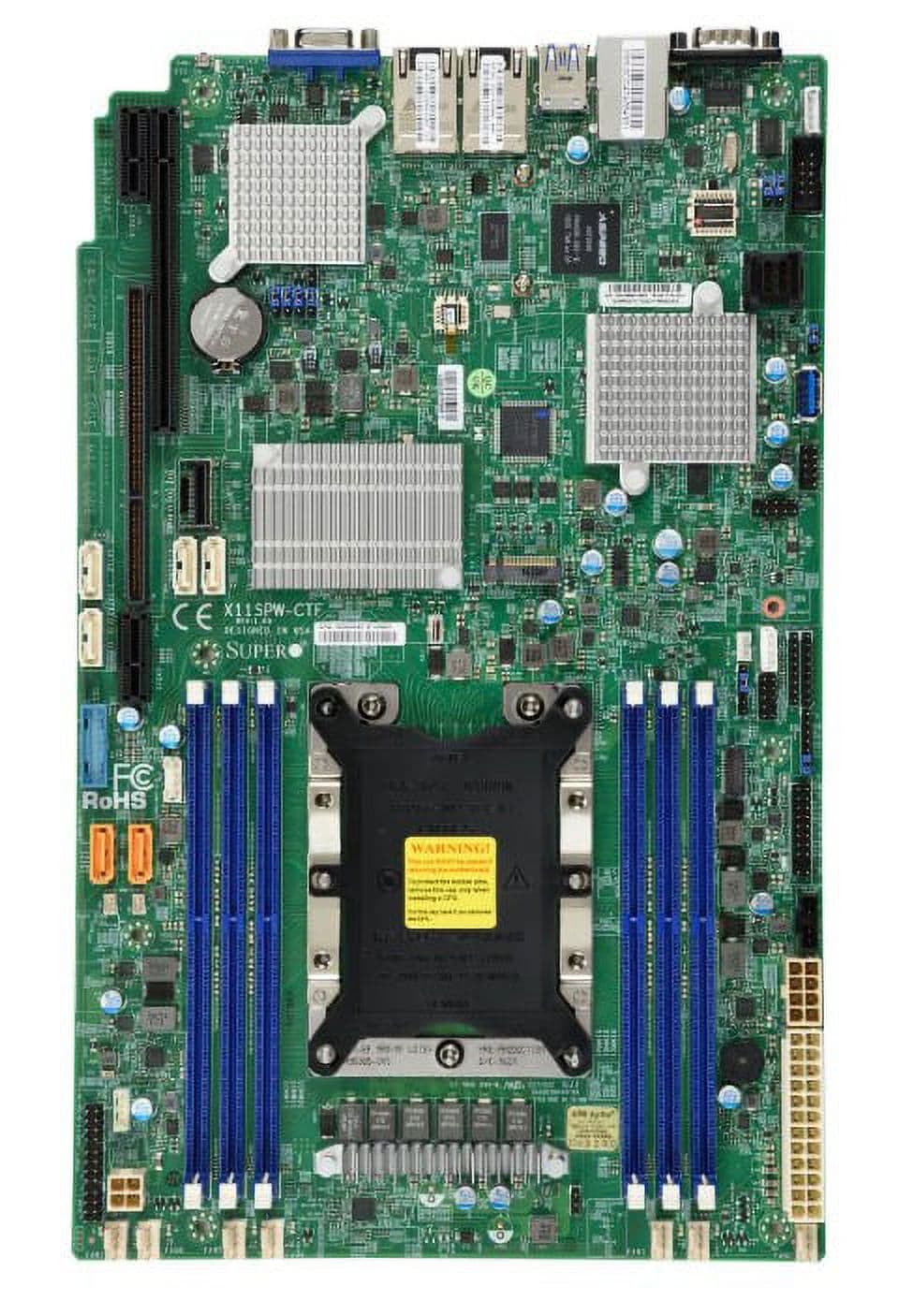

*NEW* Supermicro X11SPW-CTF Motherboard — Single Socket LGA-3647 for 2nd Gen Intel Xeon Scalable Processors, Intel C622, Proprietary WIO

The Supermicro X11SPW-CTF is a server-class motherboard designed for 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors. It supports a single CPU in the LGA-3647 (Socket P) socket with CPU TDP support up to 205W and is based on the Intel C622 chipset. Memory: six DIMM slots supporting up to 1.5TB 3DS ECC RDIMM or up to 1.5TB 3DS ECC LRDIMM, both at DDR4-2933MHz. Storage: ten SATA3 (6Gbps) ports provided by the C622 and four SAS3 (12Gbps) ports via a Broadcom 3008 controller; hardware RAID 0, 1, 10 is supported. An M.2 NGFF connector is available (M.2 interface: PCIe 3.0 x4 and SATA; Form Factor: 2280, 22110; Key: M-Key Double Height Connector). Expansion: 1 PCIe 3.0 x8 (in x16) and 1 PCIe 3.0 x32 Left Riser slot. Networking includes 2 10GbE LAN ports. I/O features include 1 VGA, 2 COM ports and a TPM header. The board also provides 2 SuperDOM with built-in power.
