Eugene Color EBC-A20 Electrical Tools sku-12026558676

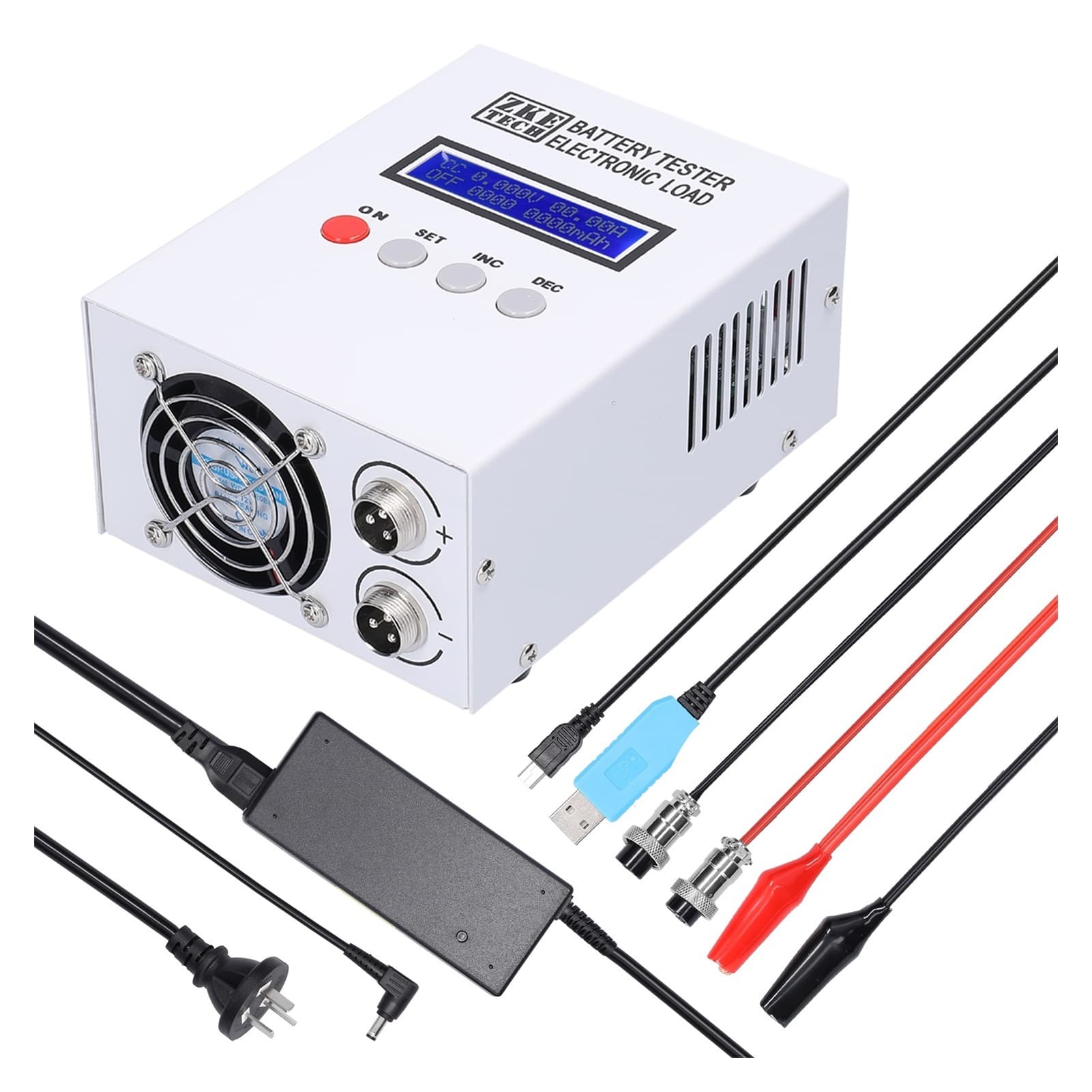

Eugene Color EBC-A20 is an aluminum-alloy battery tester in Electrical Tools; its listed color is Other. It tests lithium and lead-acid battery capacity through separate charging and discharging or an automatic recharge-discharge-recharge cycle. Maximum power is 85W. Discharge voltage is adjustable from 0.00 to 30.00V in 0.01V steps; recharge voltage runs from 0.00 to 18.00V in 0.01V steps.

Discharge current starts at 0.10A and reaches 20A; recharge current reaches 5A, with current limited when power is exceeded or supply voltage is above 10V. Constant-current discharge, constant-power discharge and constant-current/constant-voltage charging modes are supported. Voltage testing covers 0.000 to 4.500V with 0.003V accuracy and ±0.5% error, and 4.50V to 30.00V at the higher range.

The tester has four-wire detection, an LCD for test readings and computer control through a dedicated Mini USB-to-TTL serial connection for graphing, calibration, firmware upgrades and charge/discharge cycles. Simple and standard EU- or US-plug configurations are listed. Package dimensions are 280 × 240 × 150mm (11.02 × 9.45 × 5.91in).

The simple package weighs 1200g (2.65lb); the standard package weighs 1800g (3.97lb) and adds a serial cable and 19V power supply. Each includes 1 battery tester and test leads. SKU: sku-12026558676. Discharge and recharge current settings use 0.01A increments. High-range voltage testing has 0.01V accuracy and ±0.5% error. Current testing covers 0.10-20.00A with 0.01A accuracy and ±0.5% error.

Capacity resolution is 0.001Ah up to 10Ah, 0.01Ah from 10Ah to 100Ah, and 0.1Ah above 100Ah. The standard package's 19V power supply is rated at 4A.
